Tripp Lite-TRPB020-U08-19-K
Tripp Lite-TRPB020-U08-19-K
Tripp Lite-TRPB020-U08-19-K
Tripp Lite-TRPB020-U08-19-K
Tripp Lite-TRPB020-U08-19-K Tripp Lite-TRPB020-U08-19-K Tripp Lite-TRPB020-U08-19-K Tripp Lite-TRPB020-U08-19-K Tripp Lite-TRPB020-U08-19-K

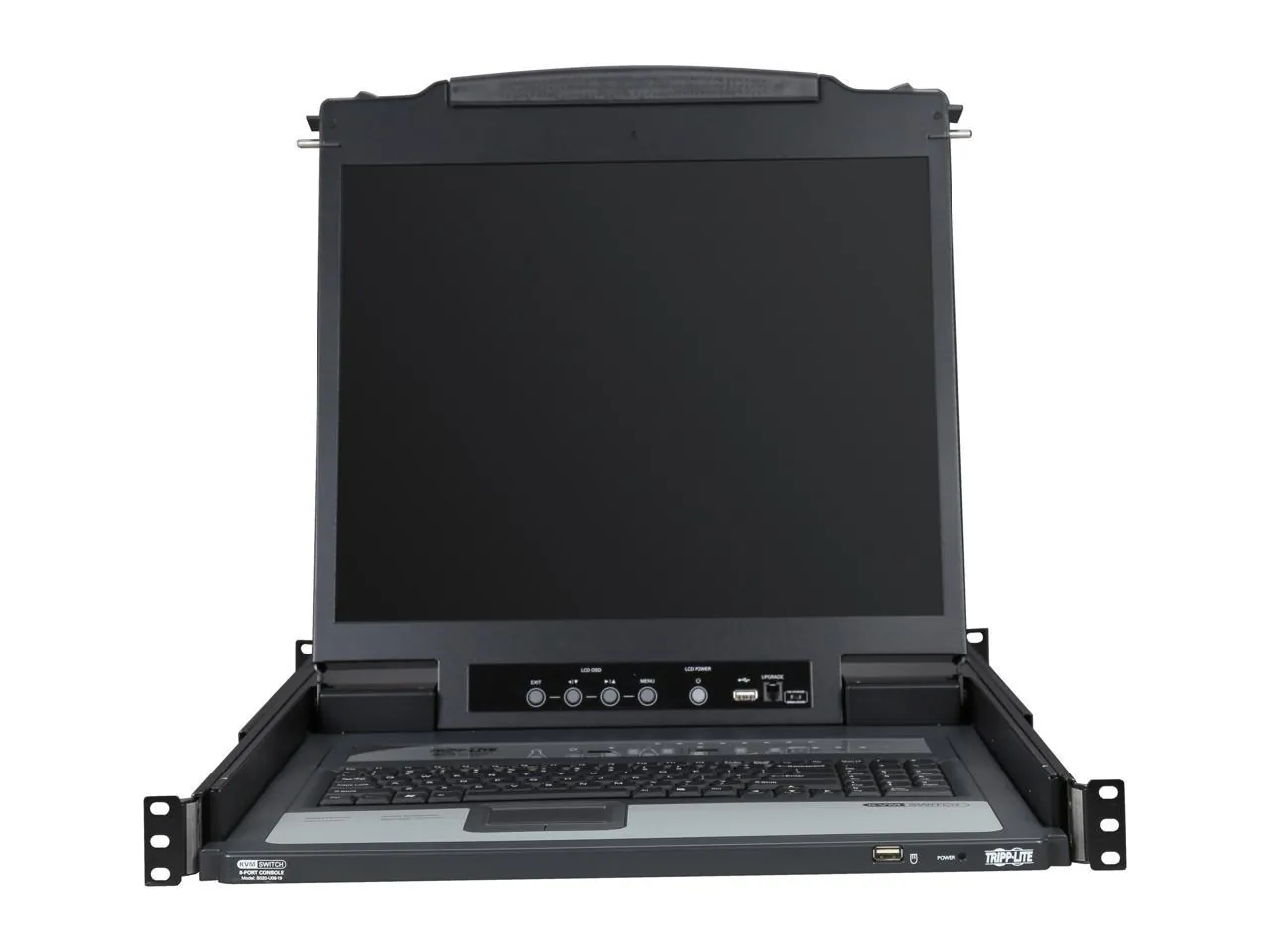

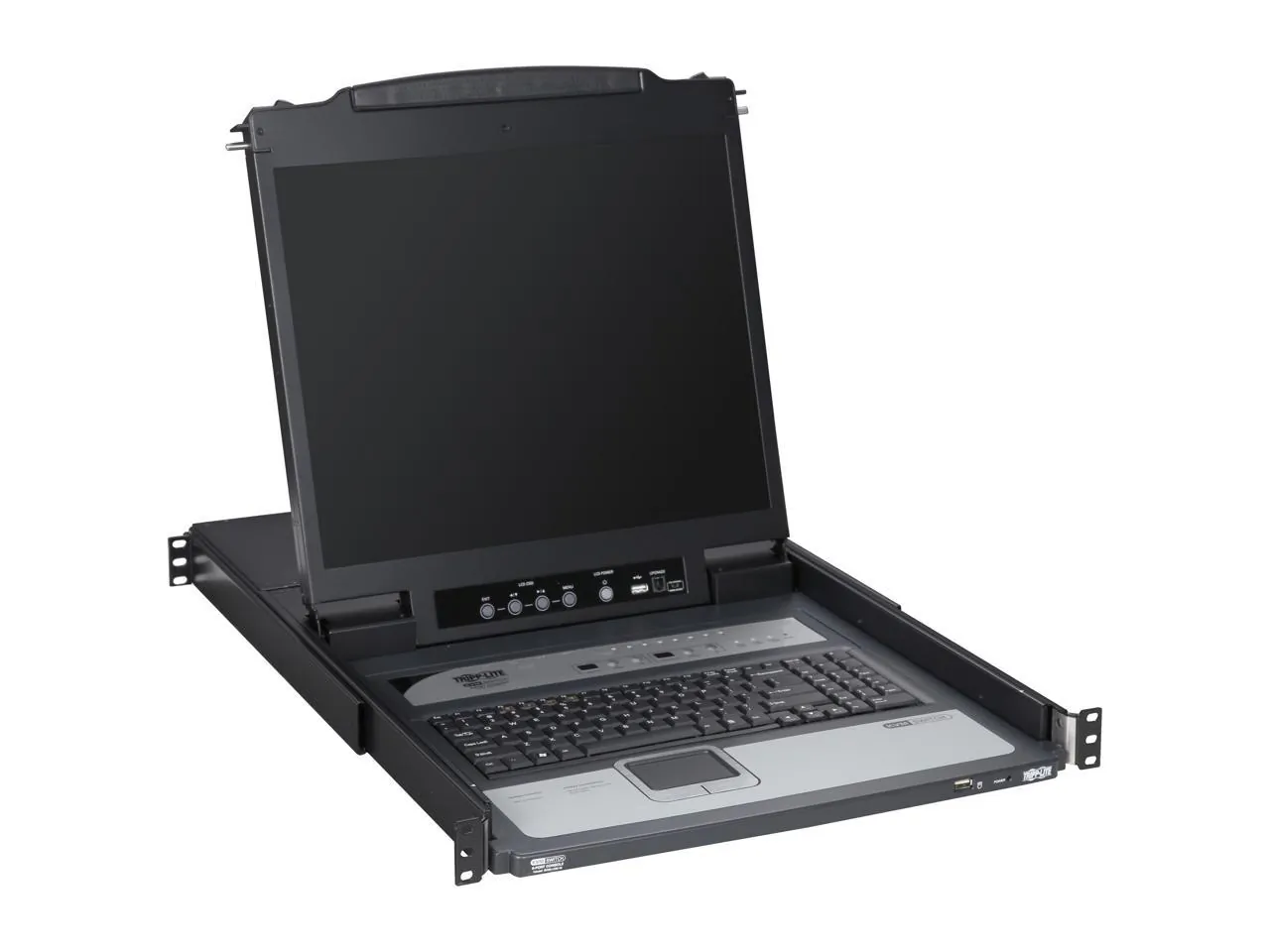

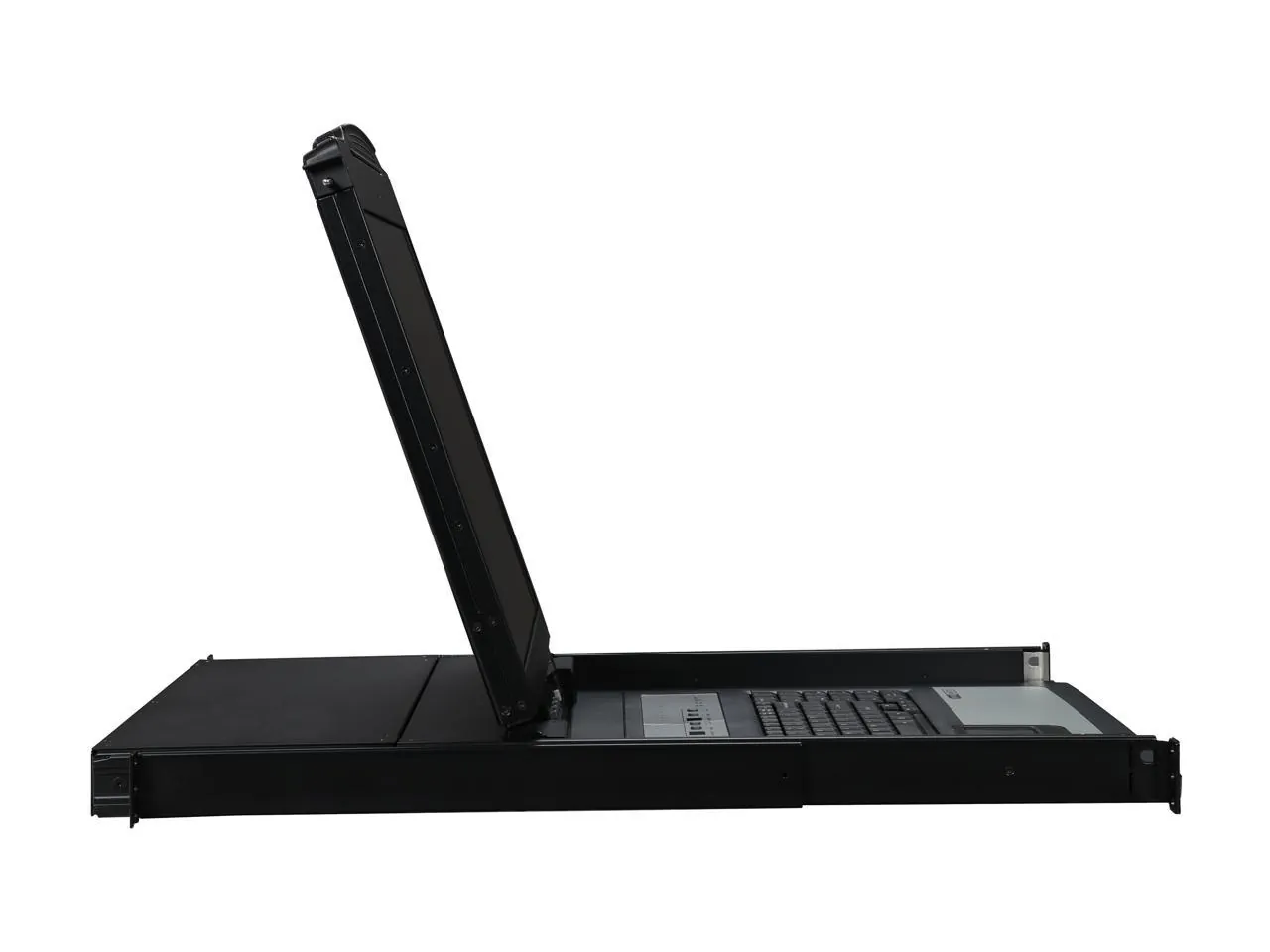

Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables, TAA
  • Cost: $1412.02
  • Quantity: 21
  • Free Shipping
  • Views:
  • Sold and Shipped By: Aztek Computers

Control up to 8 computers with a single KVM switch with integrated console. This KVM switch is a smart solution for secure and centralized server control that saves rack space and money.



  • UPC Code037332150776
  • ConsoleYes
  • Max CPU8
  • TechnologyPS/2; VGA/SVGA
  • VIDEO
  • Max Supported Video Resolution1280 x 1024 @60Hz
  • INPUT
  • Nominal Input Voltage(s) Supported100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
  • Input Frequency50/60Hz
  • Input Current120V (0.8A) / 230V (0.4A)
  • POWER
  • Power Consumption (Watts)28.50
  • Power Consumption Detail(28.5W at 120V, 60Hz) / (29.1W at 230V, 50Hz)
  • PHYSICAL
  • ColorBlack
  • Cable Jacket ColorBlack
  • Included Mounting Accessories: Yes
  • LCD Monitor (in.): 19
  • Shipping Dimensions (hwd / in.): 5.00 x 26.10 x 32.50
  • Shipping Weight (lbs.): 43.00
  • Unit Dimensions (hwd / in.): 1.750 x 19.000 x 27.000
  • Unit Weight (lbs.): 30.6
  • Storage Temperature Range: -4r to 140rF (-20r to 60rC)
  • Relative Humidity: 0 to 80% RH, Non-condensing
  • Operating Temperature: 32 Degrees F to 120 Degrees F (0 to 50 C)
  • BTUs: 26.1 BTUs at 120Vac/ 27.2 BTUs at 220Vac
  • Port Control: Push Buttons, Hotkeys, OSD
  • IP Remote Access: No
  • Number of Ports: 8

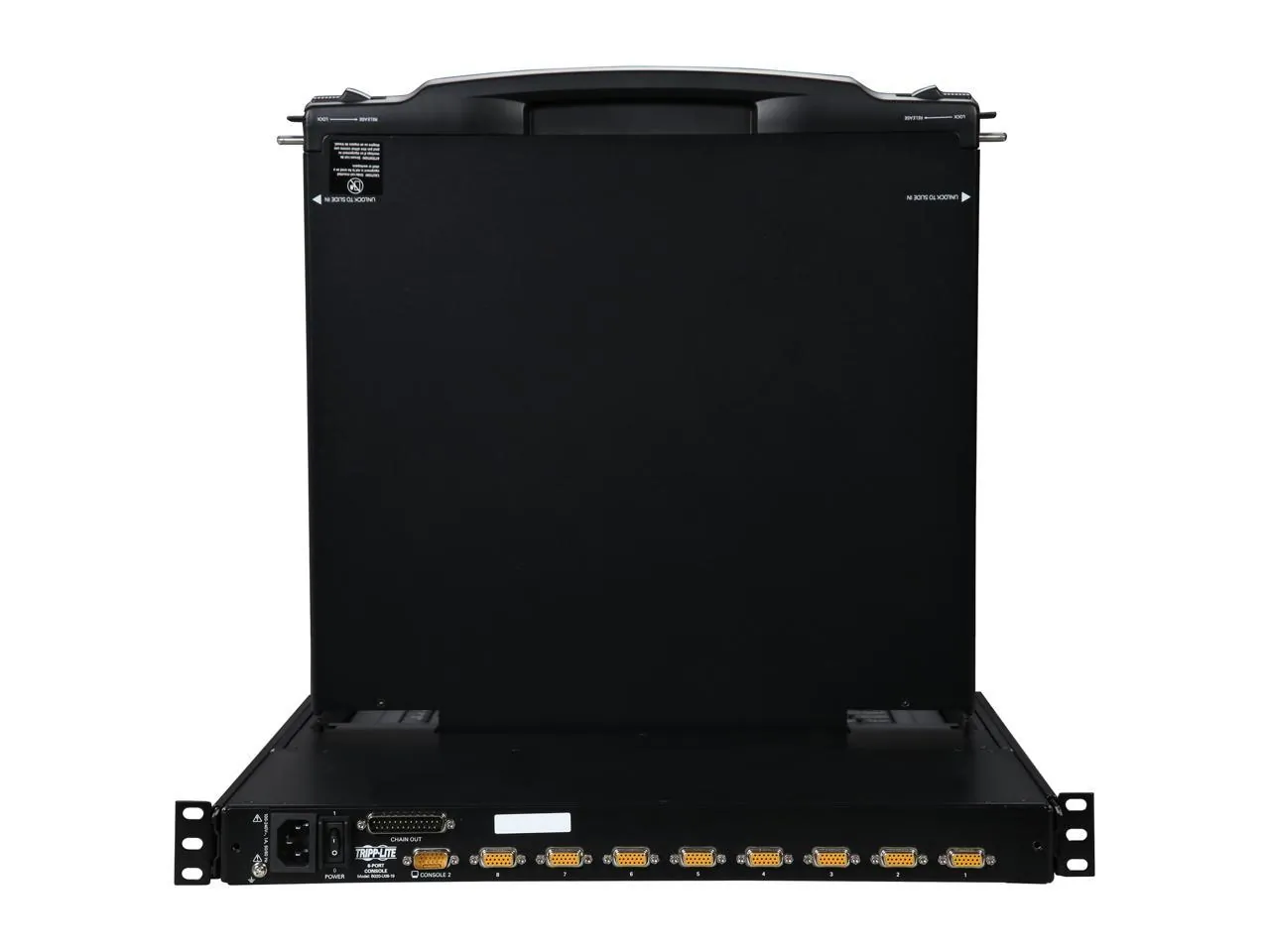

  • Computer/Server Ports: (x8) HD18 (Female)
  • Firmware Upgrade Port: RJ11
  • PC/Server Connections: PS/2; USB; VGA
  • Side A - Connector 1: (8) HD18 (FEMALE)
  • Side B - Connector 1: (1) HD18 (MALE)
  • Side B - Connector 2: (1) DB25 (MALE)
  • Side B - Connector 3: (1) RJ11 (FEMALE)
  • Side B - Connector 4: (2) USB A (FEMALE)
  • USB Specification: USB 2.0 (up to 480 Mbps)
  • NIAP-Certified Secure: No
  • Number of Users: 1
  • Autoscan (Y,N): Y
  • Autoscan Duration: 1-255 Seconds
  • Product Certifications: EN 60950-1; CAN/CSA C22.2; CAN/CSA-C22.2 No. 60950-1 (Canada); cUL Listed; UL 60950-1; UL Listed
  • Product Compliance: RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
  • Product Warranty Period (Worldwide): 1-year limited warranty
Number Of Users
1

Console
Yes

Port Control
Push Buttons, Hotkeys, OSD

Max CPU
504 Unit Dimensions (HWD/in.)
1.75 x 17 x 27

IP Remote Access
YES WITH B051-000

Mounting accessories included
Yes

Color
Black

Style
1U Rackmount

LCD Monitor (in.)
19 CONNECTIONS
Ports:8
Computer/Server Ports:(x8) HD18 (Female)
Daisy-Chain Port:DB25 Male
Firmware Upgrade Port:RJ45
Included Cable (Side A) - Connector 1:HD18 Male
Included Cable (Side B) - Connector 1:HD15 Male Included Cable (Side B) - Connector 2:PS/2 male
Included Cable (Side B) - Connector 3:PS/2 Male
Included Cable (Side B) - Connector 4:USB A Male
Other Ports - Port 1:USB A for Optional USB Mouse connection
Other Ports - Port 2:USB A for Optional Flash Drive connection
Remote Console Port:HD18 Female + Dongle Cable Kit w/VGA, PS2, and USB Females

Autoscan (Y,N):
Y

CERTIFICATIONS
Approvals:UL, cUL, CE, FCC, RoHS Package Contents
B020-U08-19-K 1U rackmount console with built-in 8-Port KVM switch, 19" LCD, keyboard, and touchpad (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
USB/PS2 combo console cable kit, Quick start guide
RJ11 to DB9 firmware upgrade cable, Grounding wire
C13 to 5-15P power cord, Rackmount hardware
CD with owners manual System Requirements
Computer w/HD15 port USB port or PS/2 keyboard/mouse P778-006 USB/PS2 Combo KVM CBL kit required each Comput Item Dimension (L"xW"xH"):
32.5 x 26.1 x 5

Weight:
38.6 lb

Warranty Information:
1 Year
