Add a HDMI display and 60W PD charging to your USB Type-C DisplayPort Alternate Power Delivery and Thunderbolt 3 enabled system
Chipset:
VL100Q4+PS176
Compatible with DisplayPort Standard Version 1.2
Video resolution:
720p, 1080p and up to 3840x2160 at 60Hz (4K UHD)
HDMI cable transmission distance:
up to 16ft (5m)
System Interface:
USB Type-C
DisplayPort Alt
Power Delivery
Thunderbolt 3TM technology
Power Delivery (PD):
Total power output: 60 Watts (Max)
5V/2A 12V/1.5A 12V/3A 12V/5A 20V/3A
Product:
Color: Black
Housing: Aluminum
Connector:
1x USB Type-C, Male
1x 19-pin, HDMI Type-A, Female
1x 24-pin, USB-C, Female, Power Delivery, 60W
Nickel plated
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 10 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS

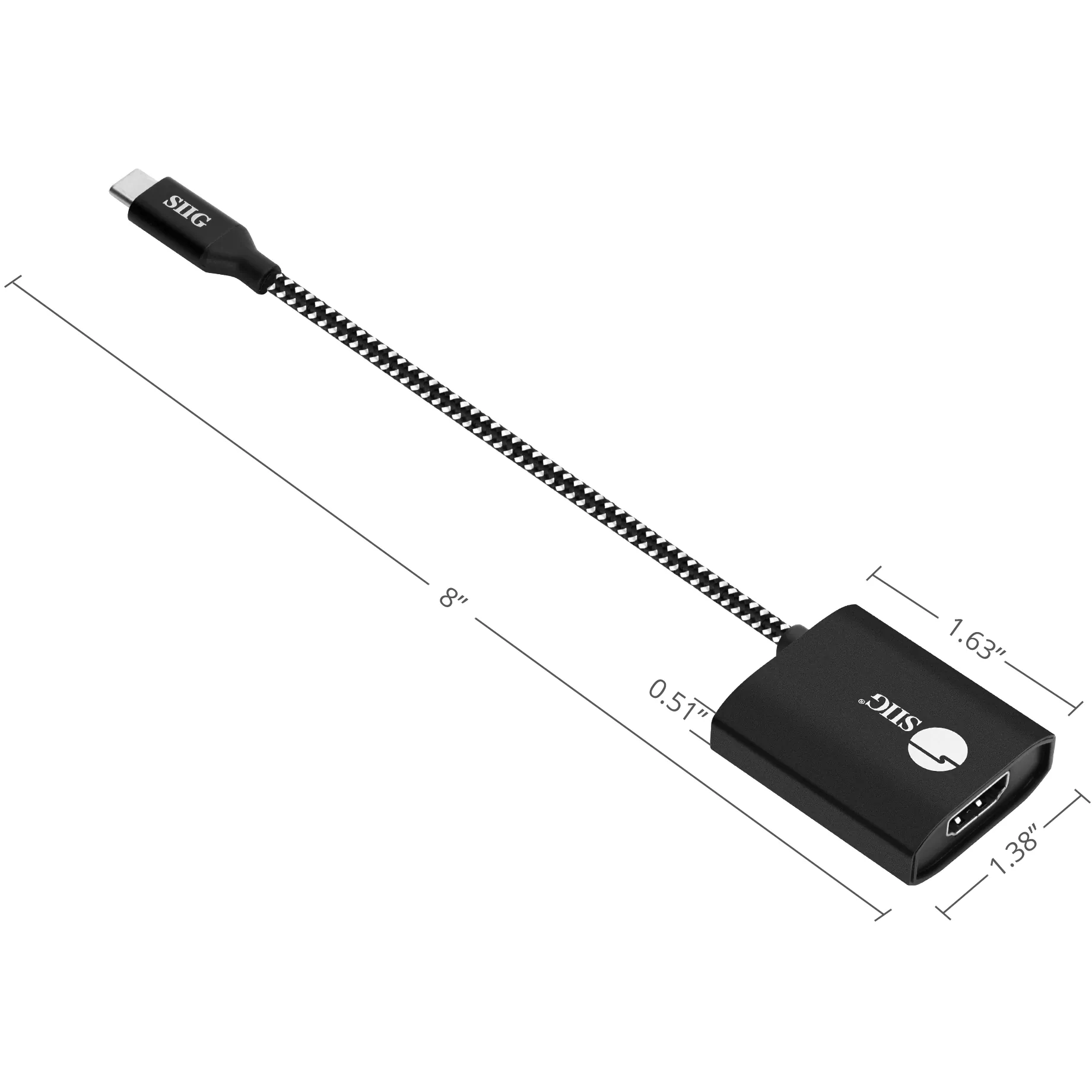

Item Dimension (L inchxW inchxH inch)
1 x 7 x 10
Weight
1.00lb
Warranty Information
2 years
