Product Information

• Part Number: V11H921520
• Manufacturer: Epson
• Product Line: Epson BrightLink
• Model: 1480Fi
• Product Type: Interactive Laser Projector
• Resolution: 1080p (Pixel-Shift Full HD)
• Brightness: 5000 Lumens (Color and White)
• Light Source: Laser Phosphor
• Light Source Life: Up to 20,000 hours (Normal mode), 30,000 hours (Extended mode)
• Interactivity: Pen-based (2 pens included), Touch-ready (optional module for up to 6 or 8 touch points)
• Connectivity: Wi-Fi, LAN, HDMI, VGA, USB, RS-232C
• Throw Ratio: Ultra-Short Throw (0.27 to 0.37:1)

Product Description

The Epson BrightLink 1480Fi is a 1080p Full HD interactive laser projector designed to transform classrooms and meeting spaces into dynamic collaborative environments. With 5,000 lumens of both color and white brightness and a 2,500,000:1 dynamic contrast ratio, it delivers clear, vibrant images even in well-lit rooms. Its ultra-short throw ratio minimizes shadows and glare. The projector features a virtually maintenance-free laser light source with a life of up to 20,000 hours, eliminating the need for lamps. It offers out-of-the-box pen-based interactivity for two users and can be upgraded with an optional touch module for multi-touch capabilities. The 1480Fi supports PC-free digital whiteboard functions, allowing users to draw, save, print, and email content directly. Built-in wireless connectivity enables seamless sharing from up to 50 compatible devices, and it includes a trial subscription to SMART Learning Suite.

Product Specifications

• Display System: 3-Chip Polysilicon TFT LCD
• Native Resolution (Chip): 1366 x 768 (x 2 for 1080p via Pixel-Shift)
• On-Screen Resolution: Up to 1920 x 1080 (Full HD)
• Aspect Ratio: Native: 16:9; Supported: 4:3, 16:10
• Contrast Ratio: 2,500,000:1 (Dynamic)
• Color Support: 1.07 Billion Colors (10-Bit)
• Projection Size: 65 to 100 inches (diagonal)
• Keystone Correction: Horizontal: +-3?, Vertical: +-3?
• Digital Zoom: 1.0 - 1.35x
• Focus: Manual
• F-number: 1.5
• Focal Length: 3.9 mm
• Built-in Speaker: Yes (Stereo, 16W)

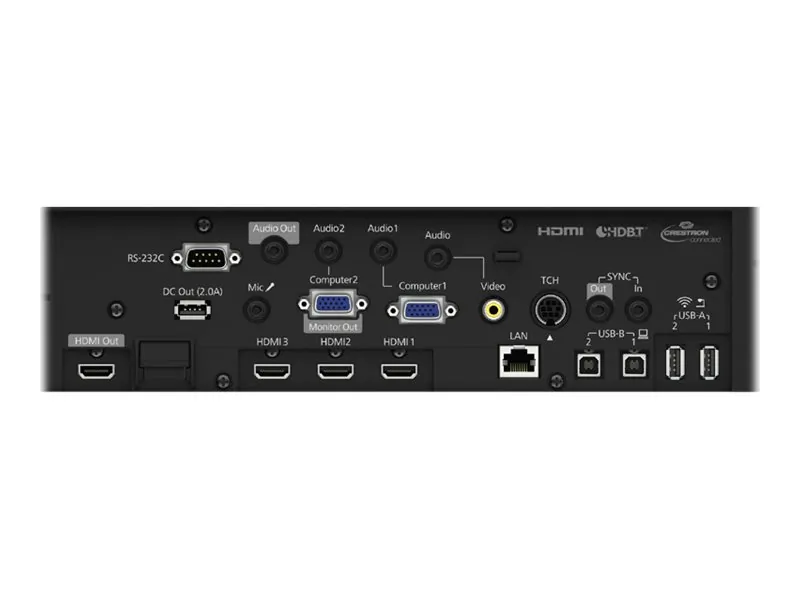

• Inputs: {'HDMI': '3 (HDMI Type-A)', 'VGA': '2 (DE-15/DB-15, 1 input, 1 input/output)', 'Composite Video': '1 (RCA)', 'USB': '2 x USB-A 2.0 (for memory/document camera), 2 x USB-B 2.0 (for display, audio, control)', 'Audio In': '3 x 3.5mm Mini-Stereo', 'Microphone In': '1 x 3.5mm Mini-Stereo', 'Ethernet': '1 (RJ45)', 'Serial': '1 (RS-232C)', 'Sync In/Out': 'Yes'}
• Outputs: {'HDMI': '1 (HDMI Type-A)', 'Audio Out': '1 x 3.5mm Mini-Stereo'}
• Wireless Features: Built-in Wi-Fi (IEEE 802.11b/g/n/ac), Epson iProjection software support, Miracast
• Fan Noise: 36 dB (Normal Mode), 27 dB (Quiet Mode)
• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: 381W (Normal), 270W (ECO Mode), 2.0W (Standby Communication On), 0.5W (Standby Communication Off)
• Dimensions (W x D x H): 18.1 x 18.2 x 14.8 inches (46.0 x 46.2 x 37.6 cm)
• Weight: 21.4 lbs (9.71 kg) (with cable cover)
• Operating Temperature: 32 to 104?F (0 to 40?C)
• Security Features: Kensington lock provision, security anchor bar, password protection
• System Compatibility: Microsoft Windows 8/8.1, 10, 7 SP1; macOS 10.11 / macOS 10.12.x; Ubuntu 16.04 LTS, 19.04, 18.04 LTS
