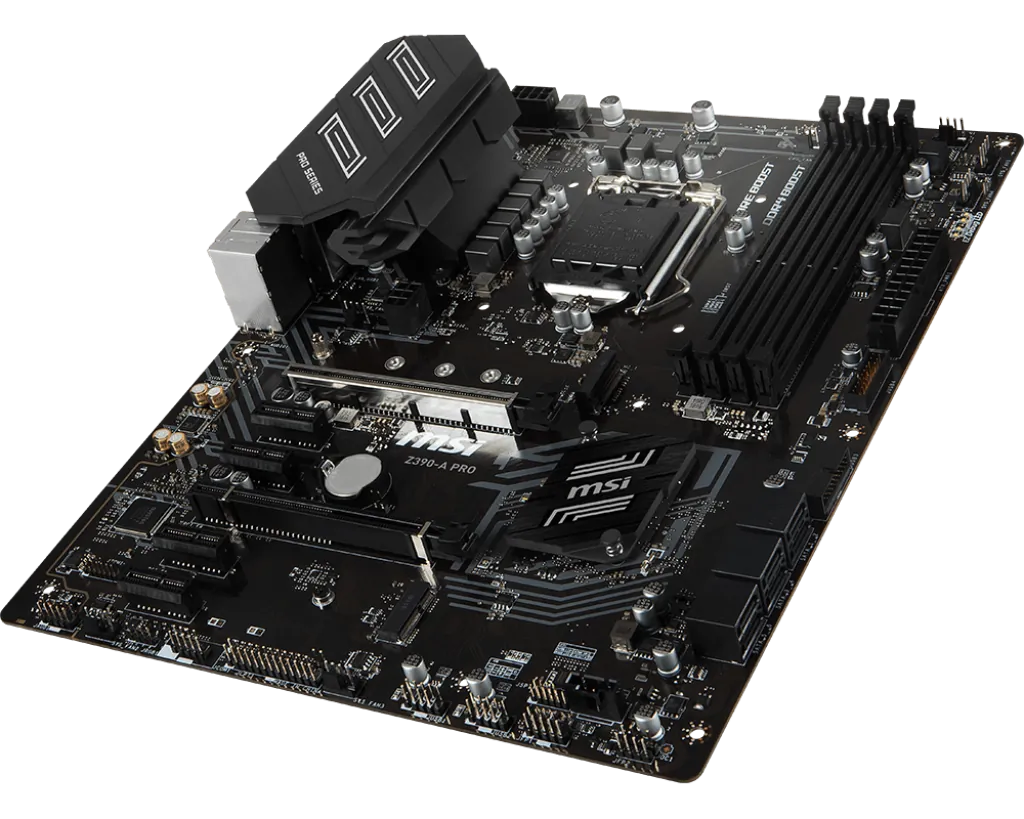

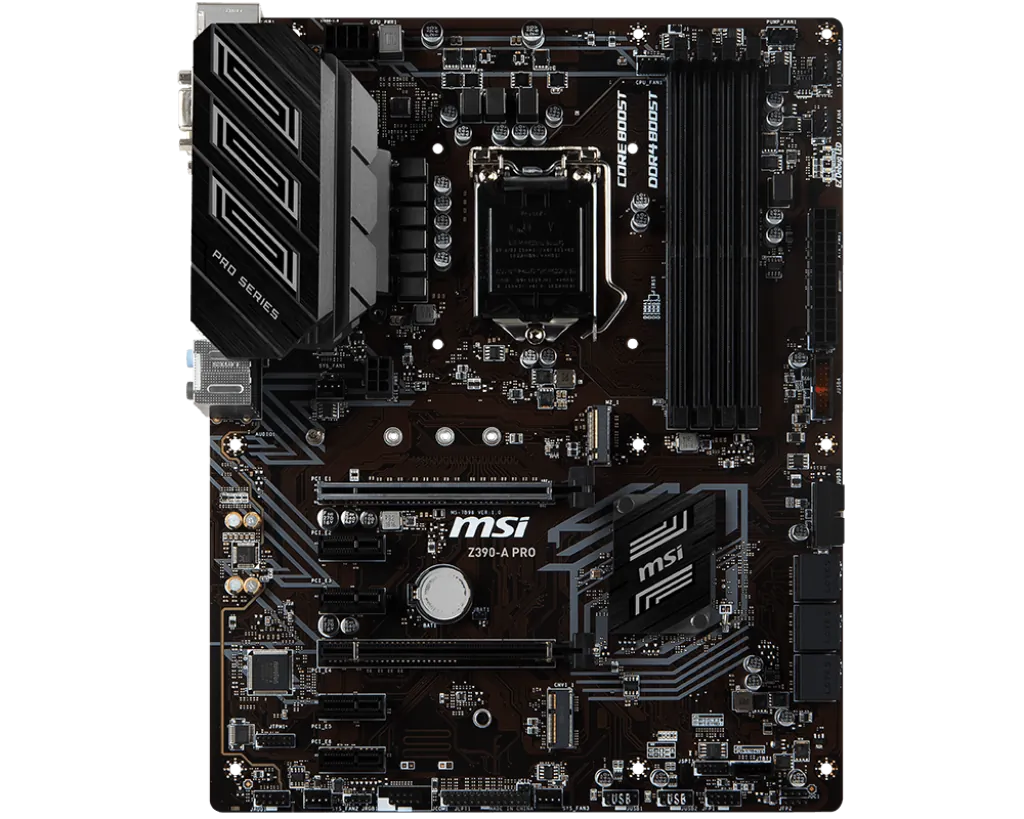

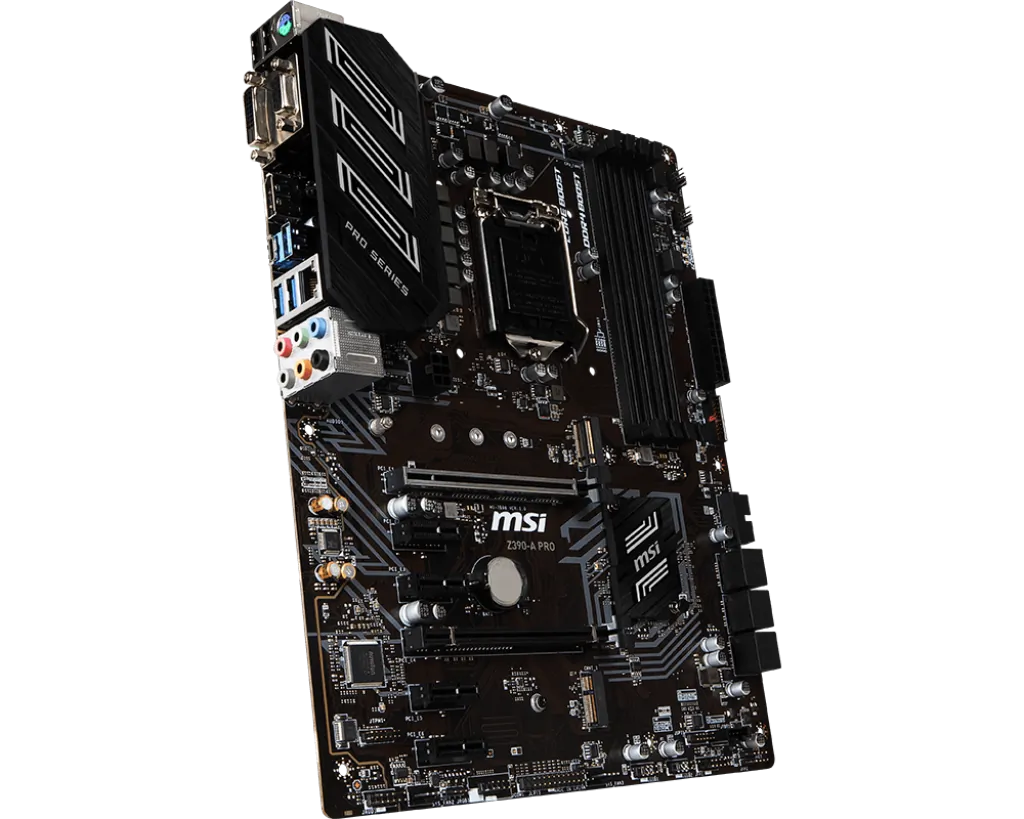

Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector
SOCKET
1151
CPU (MAX SUPPORT)
i9
CHIPSET
Intel Z390 Chipset
DDR4 MEMORY
4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
64
PCI-E X16
2
PCI-E GEN
Gen3
PCI-E X1
4
SATAIII
6
M.2 SLOT
1
RAID
0/1/5/10
TPM (HEADER)
1
LAN
10/100/1000x1
USB 3.1 PORTS (FRONT)
4(Gen1, Type A)

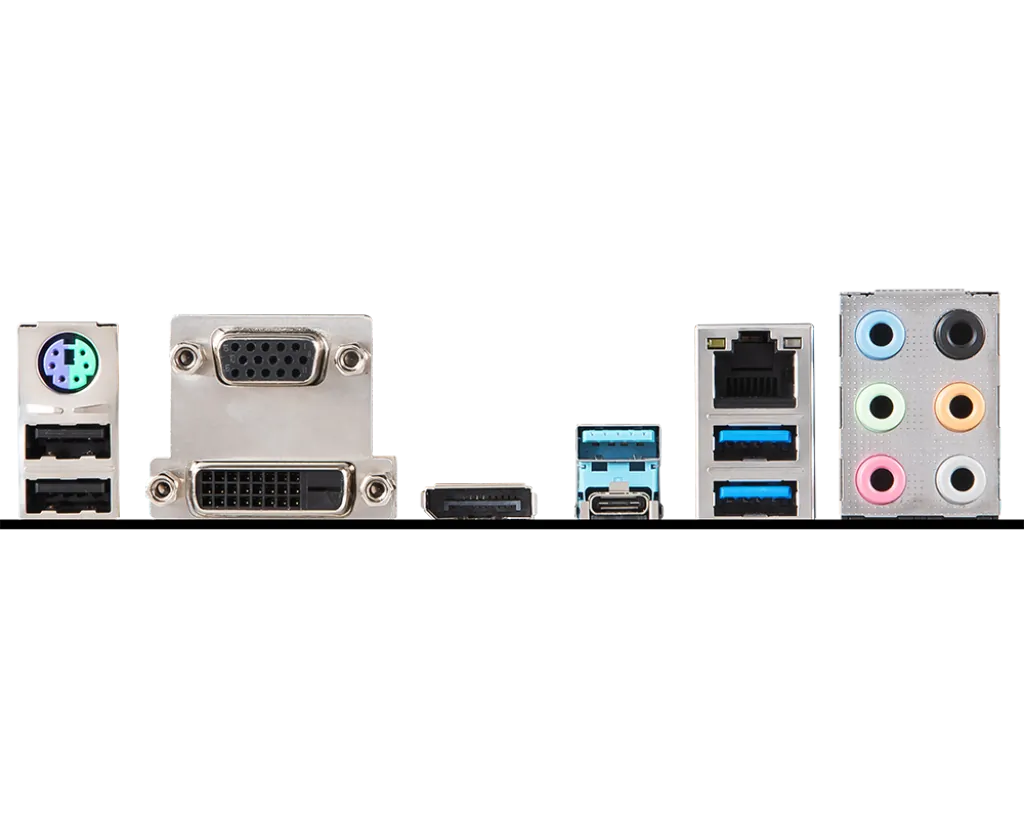

USB 3.1 PORTS (REAR)
1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
SERIAL PORTS(FRONT)
1
