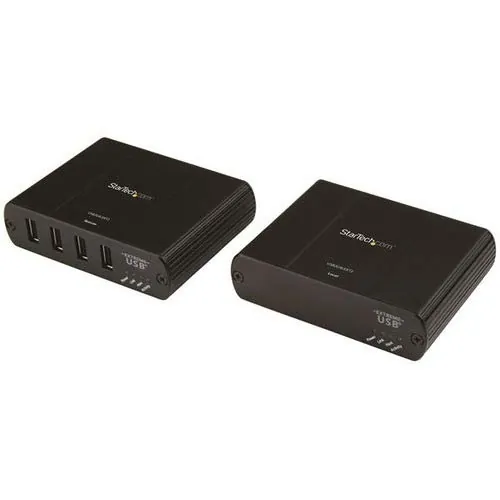

EXTENDER GIGABIT CAT5E/CAT6/CAT7
HARDWARE
Cabling
Cat 5e UTP or better
Ports
4
PERFORMANCE
Max Distance
100 m / 330 ft
Maximum Data Transfer Rate
1 Gbps (LAN)
480 Mbps (USB)
CONNECTOR(S)
Local Unit Connectors
1 - USB B (4 pin) Female
1 - RJ-45 Female
Remote Unit Connectors
1 - RJ-45 Female
4 - USB Type-A (4 pin) USB 2.0 Female
SOFTWARE
OS Compatibility
OS Independent, No additional drivers or software required
SPECIAL NOTES / REQUIREMENTS
System and Cable Requirements
Available USB port
INDICATORS
LED Indicators
1 - Power
1 - Link
1 - Host
1 - Activity
1 - RJ45 Link
1 - RJ45 Activity
POWER
Center Tip Polarity
Positive Input Current
0.6 A Input Voltage
100 - 240 AC Output Current
1 A Output Voltage
24 DC Plug Type
M Power Consumption (In Watts)
24 Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
20 - 80% RH Operating Temperature
0oC to 50oC (32oF to 122oF) Storage Temperature
-10oC to 60oC (14oF to 140oF)
PHYSICAL CHARACTERISTICS
Color
Black
Material
Steel
