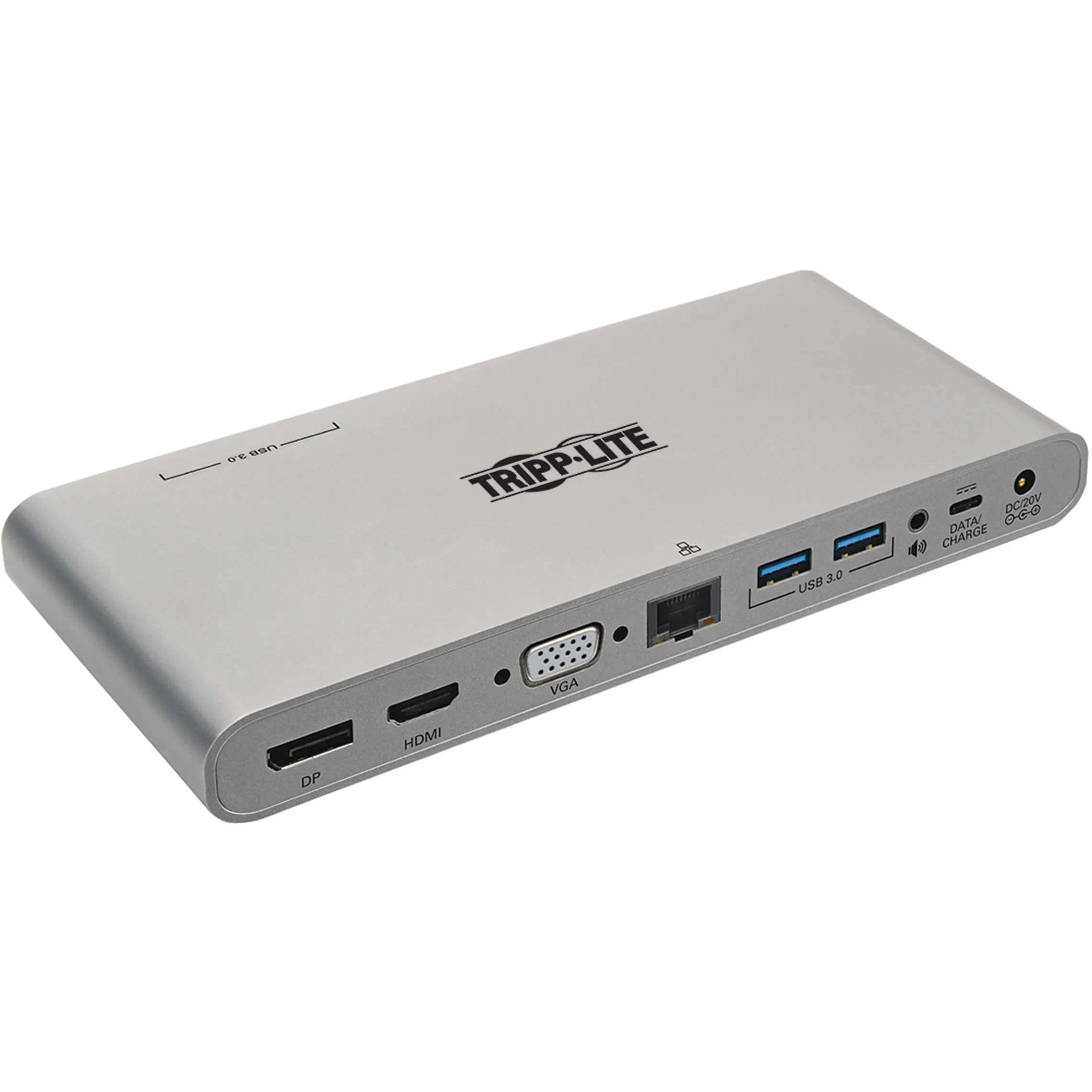

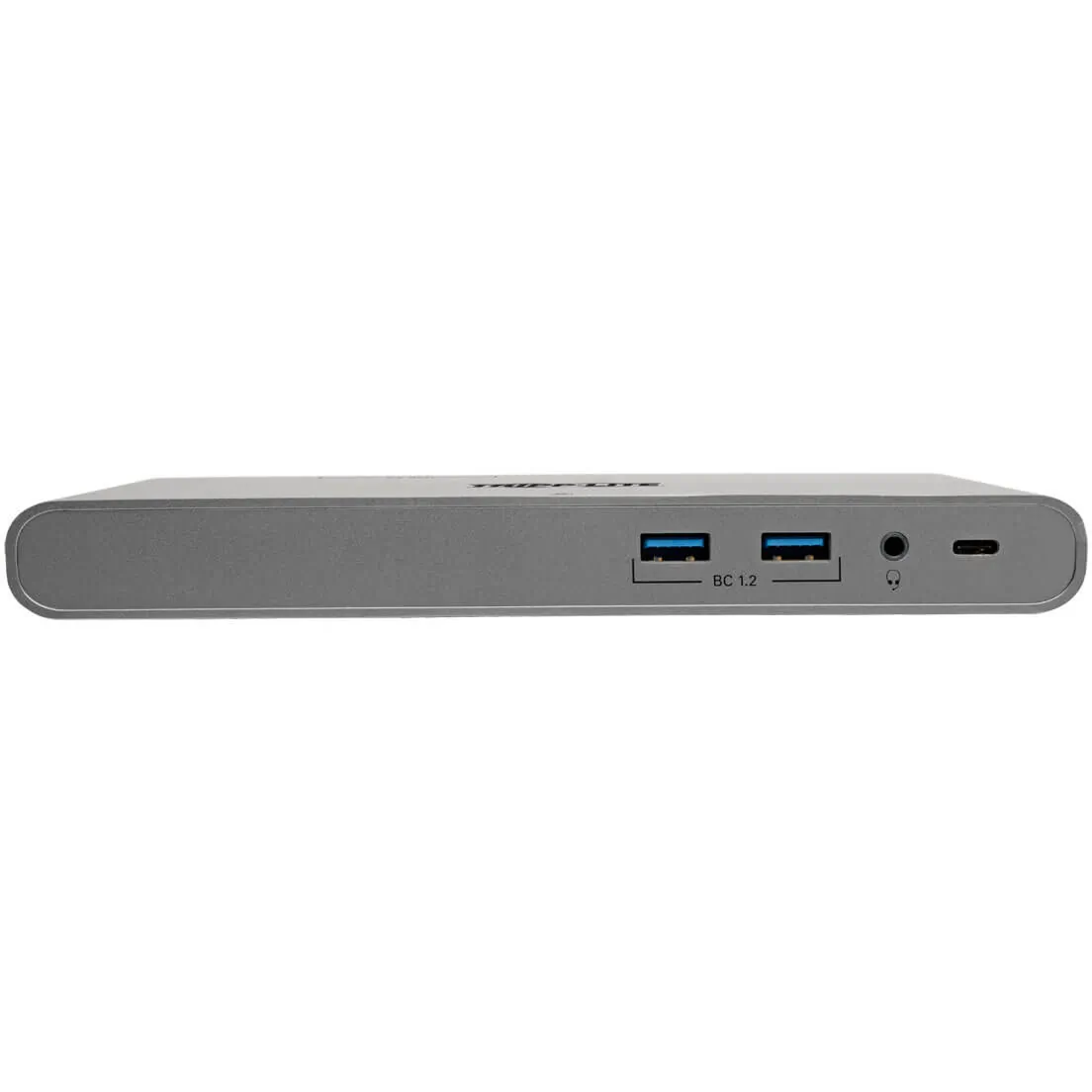

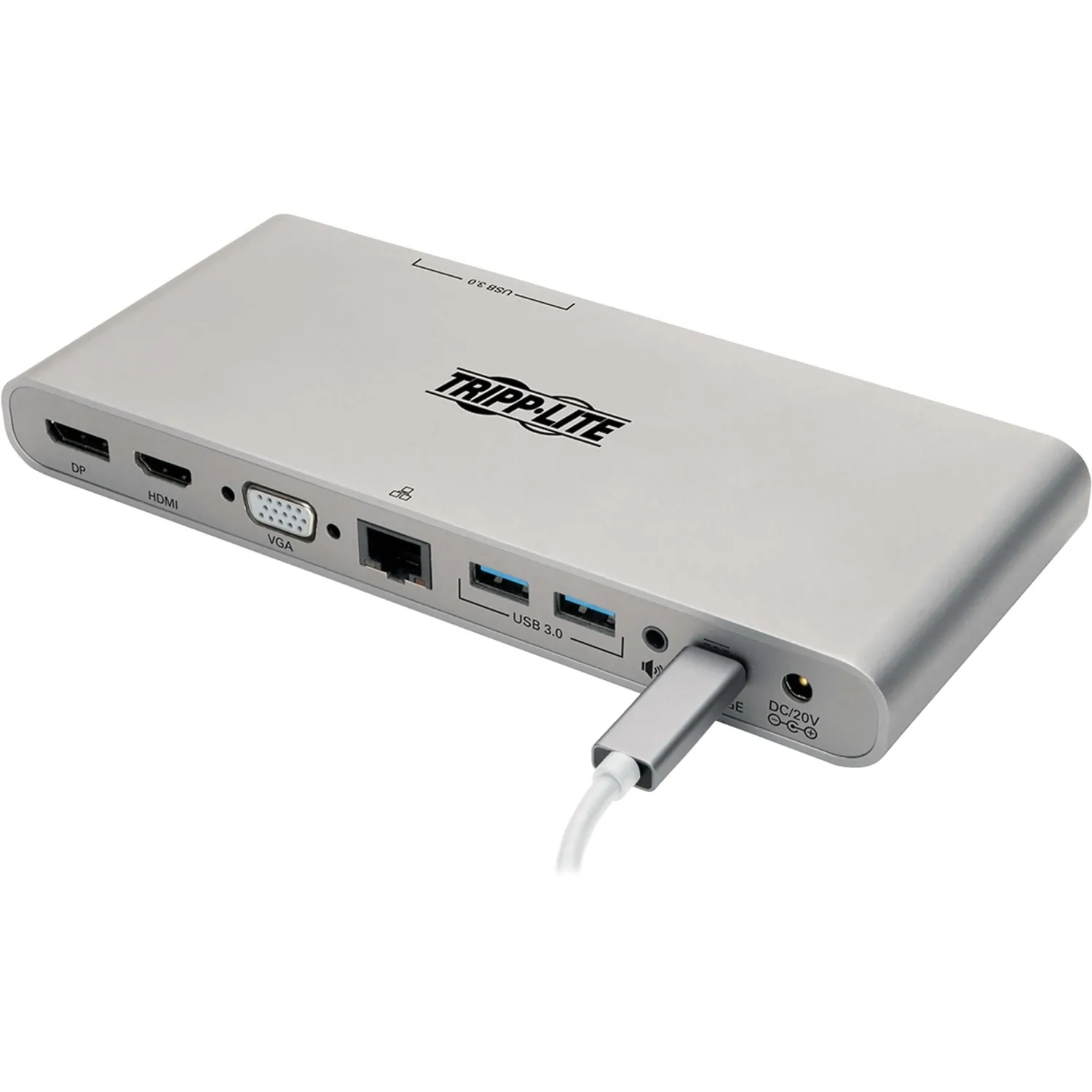

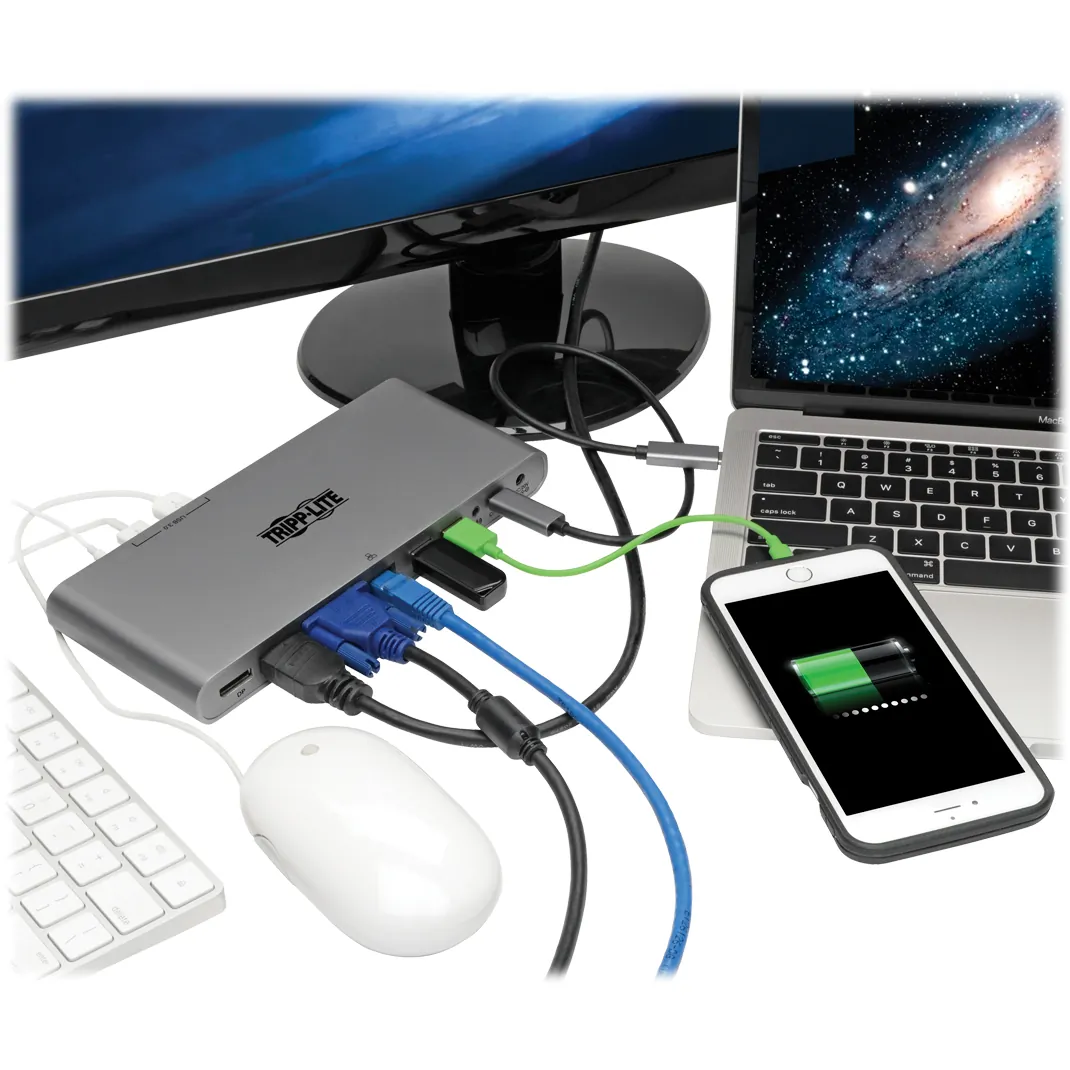

USB-C docking station with power adds HDMI, VGA, DP, USB, PD Charging and other ports to your Chromebook, MacBook or PC.?
Technology
Cat5/5e
Cat6
DisplayPort (all types)
HDMI (All types)
Stereo Audio
USB (all versions)
USB 3.0 (SuperSpeed)
USB 3.1 (Gen 1)
VGA/SVGA
INPUT
External Power Supply Input Specs (V / Hz / A)
100-240V / 50/60Hz / 1.8A
External Power Supply Output Specs (V / A)
20V / 3.6A
External Power Supply Cord Length (ft.)
4.0
External Power Supply DC Barrel Connector Specs
OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
External Power Supply Plug(s)
NEMA 1-15P North America
External Power Supply
Certifications
CE
RoHS
UL
cUL
Bus Powered
No
PHYSICAL
Unit Packaging Type
Box
Material of Construction
PVC, Aluminium
Color
Silver
Cable Jacket Rating
VW-1
ENVIRONMENTAL
Operating Temperature Range
32 to 113o F (0 to 45o C)
Storage Temperature Range
14 to 158o F (-10 to 70o C)
BTUs
34.1 BTU/Hr
Power Consumption (Watts)
10
Operating Humidity Range
10% to 85% RH, Non-Condensing
Storage Humidity Range
5% to 90% RH, Non-Condensing
Power Provided to Connected Device(s)
5V 0.9A Output (USB A), Up to 20V 5A (100W) Input (USB C)
COMMUNICATIONS
Network Speed
1Gbps
IEEE Standards Supported
802.3
802.3u
802.3az
802.3x
CONNECTIONS
Ports
12
Side A - Connector 1
USB C (FEMALE)
Side B - Connector 1
3.5MM (FEMALE)
DISPLAYPORT (FEMALE)
HD15 (FEMALE)
HDMI (FEMALE)
RJ45 (FEMALE)
USB 3.0 A (FEMALE)
USB C (FEMALE)
Side B - Connector 2
3.5MM (FEMALE)
USB 3.0 A (FEMALE)
USB C (FEMALE)
Connector Plating
Nickel
FEATURES and SPECIFICATIONS
Max Supported Video Resolution
4K x 2K (3840 x 2160) at 30Hz
Displayport Specification
1.2
HDMI Specification
1.4
HDCP Specification
1.4
USB Specification
USB 3.0 (up to 5 Gbps)
USB 3.1 Gen 1 (up to 5 Gbps)
Audio Specification
Stereo
Driver Required
No
Recommended Category Cable
Cat5/Cat5e/Cat6 Cables
USB Power Delivery (PD)
Charging Support
Yes
Auto MDIX Support
Yes
Full Duplex Support
Yes
Suspend Mode Support
Yes
Remote Wakeup Support
Yes
CERTIFICATIONS
Certifications
Tested to CE, FCC, RoHS, REACH
Item Dimension (L"xW"xH")
3 x 10 x 8
Weight
2.00 lb
Warranty Information
3-year limited warranty
