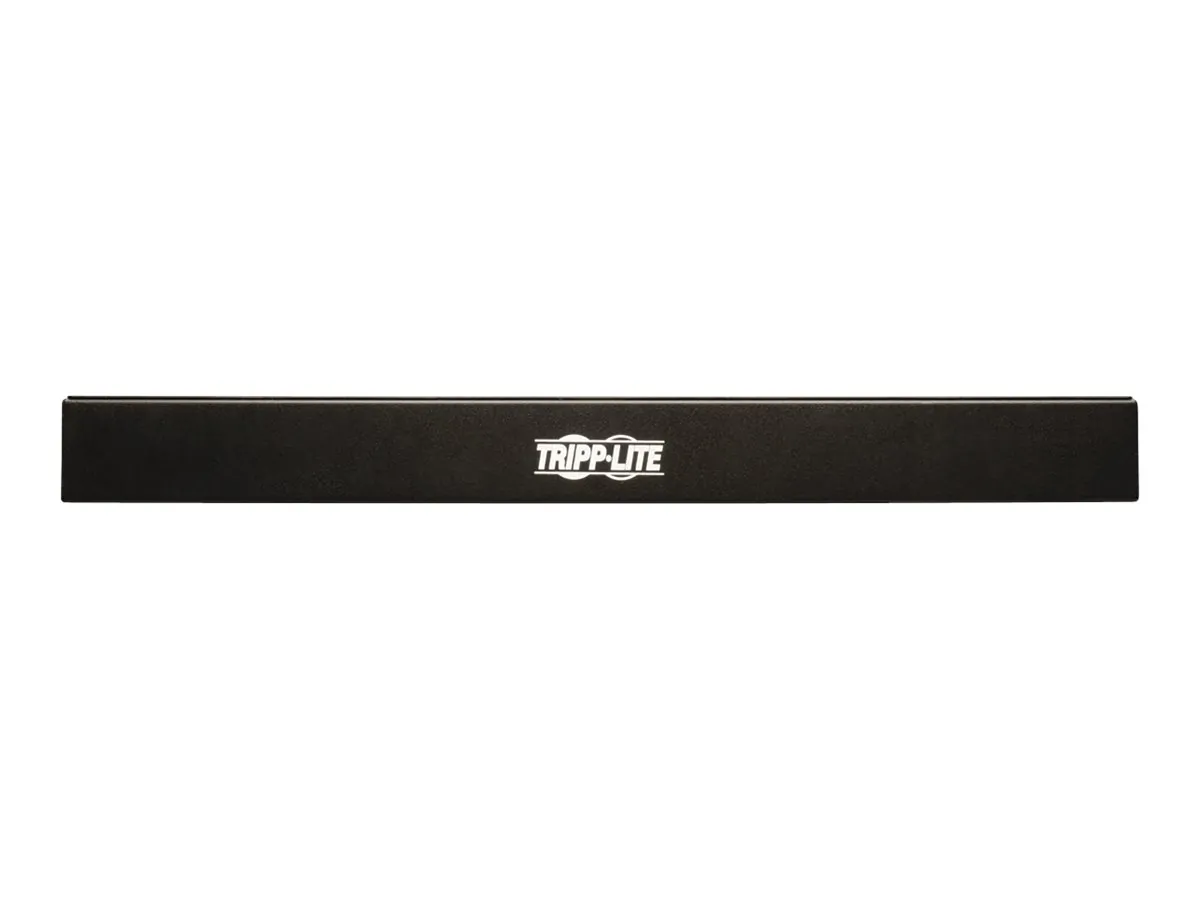

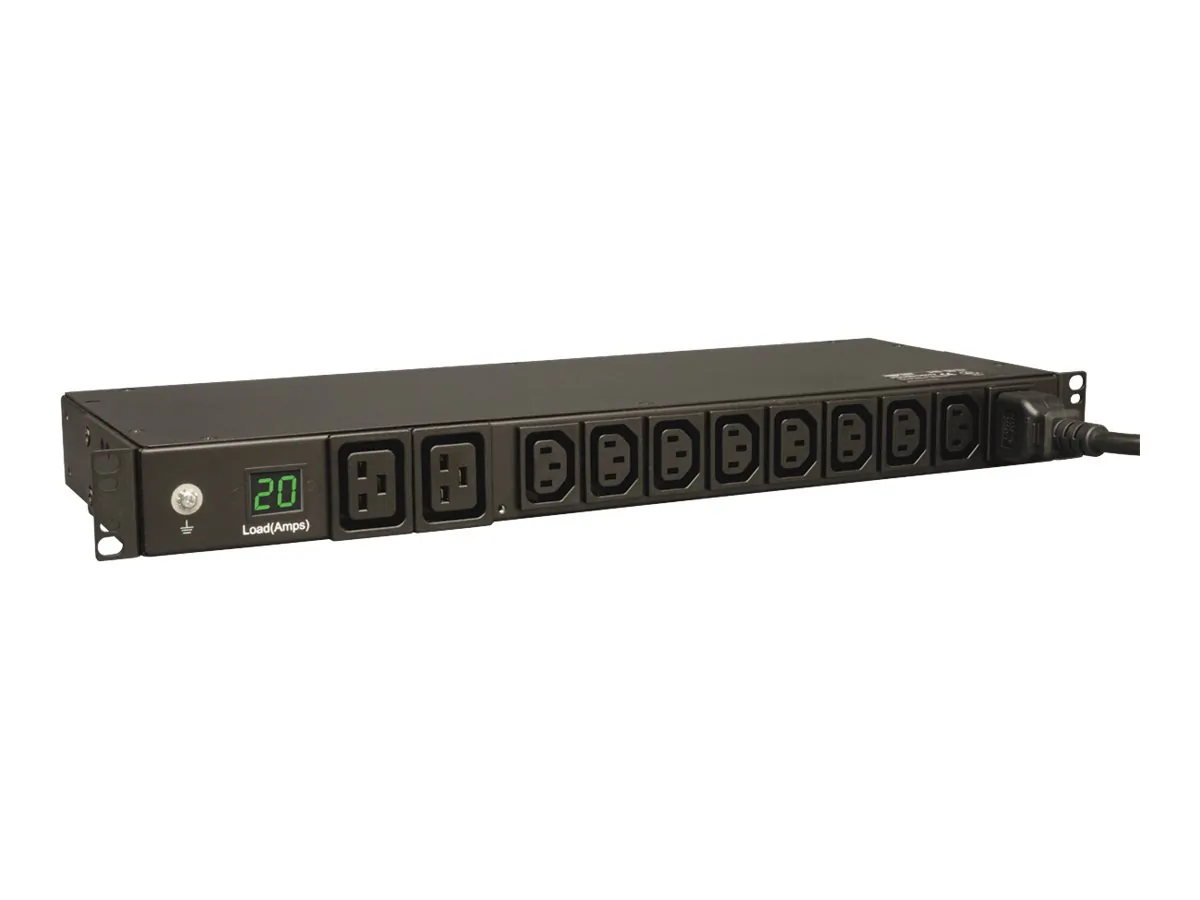

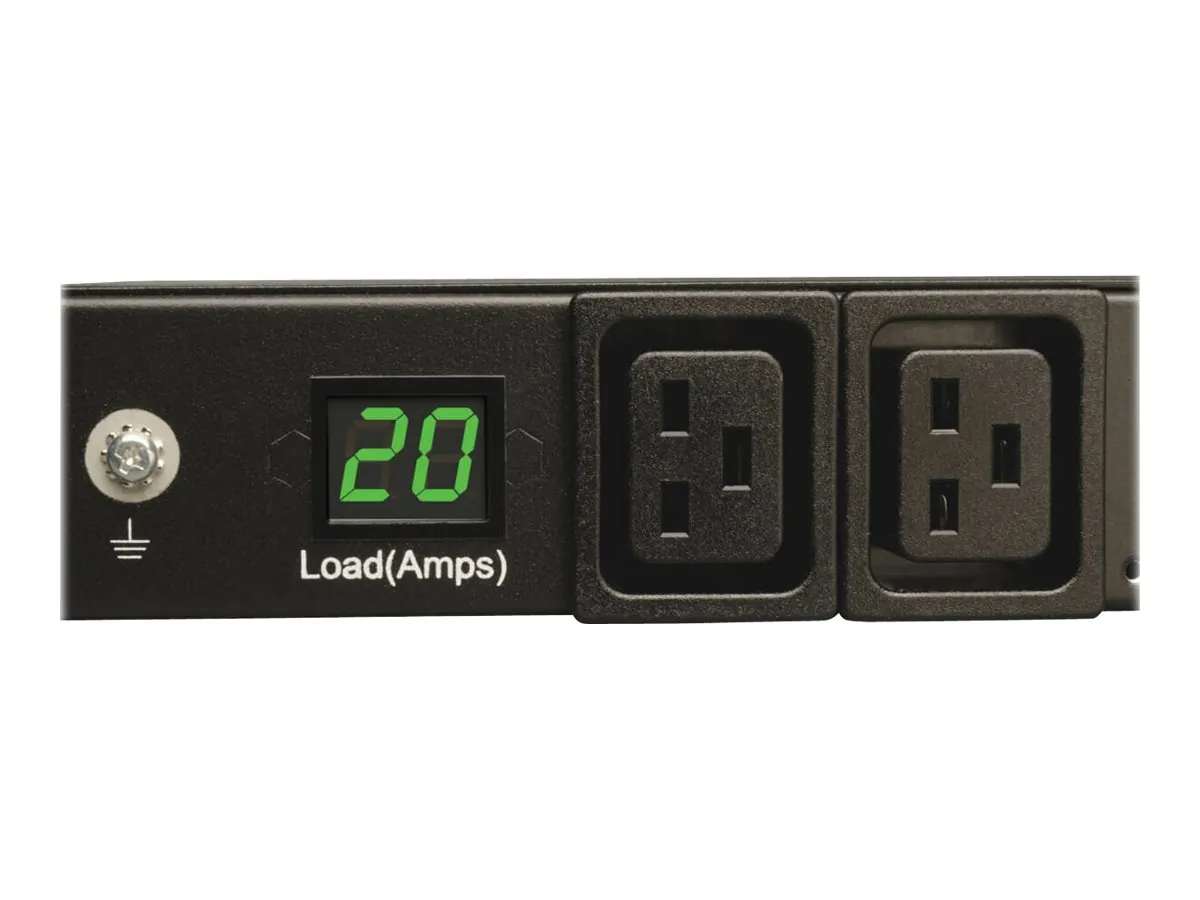

PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered. Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Included mounting brackets support horizontal installation in 19 inch racks or other surfaces, such as under-counter or wallmount configurations. Key Features 208/240 & 230V metered 1U horizontal mount Power Distribution Unit (PDU) 20A maximum capacity (Agency de-rated to 16A) Includes L6-20P and C20 line cord options (detachable via C20 inlet) 10 total output receptacles (8 C13 and 2 C19) Outlets are arranged in a single unbreakered, metered load bank Current meter offers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications Easy to read, two-character LED display offers continuous whole-PDU current monitoring data in one-amp increments Included cord retention brackets keep vital network equipment plugged in and continuously powered 1U rackmount installation supported in 2 or 4 post racks Typical Applications Ideal for network configurations requiring a metered PDU Package Includes Rackmount PDU Rack mounting brackets
OVERVIEW
PDU Type
Metered OUTPUT
Frequency compatibility
50 / 60 Hz
Output nominal voltage
208/240, 230V
Overload protection
Outlets are arranged in a single unbreakered load bank
Outlet quantity / type
8 C13 and 2 C19 outlets
Outlet Type
IEC-C13, IEC-C19
Customized load management receptacles
Each outlet is individually controllable via remote interface INPUT
Nominal Input Voltage(s) Supported
208V AC 230V AC 240V AC
PDU Input Voltage
200 208 230 240
Maximum Input Amps (A)
20
Maximum Input Amps (A) Details
20A maximum (Agency de-rated to 16A continuous)
PDU Plug Type

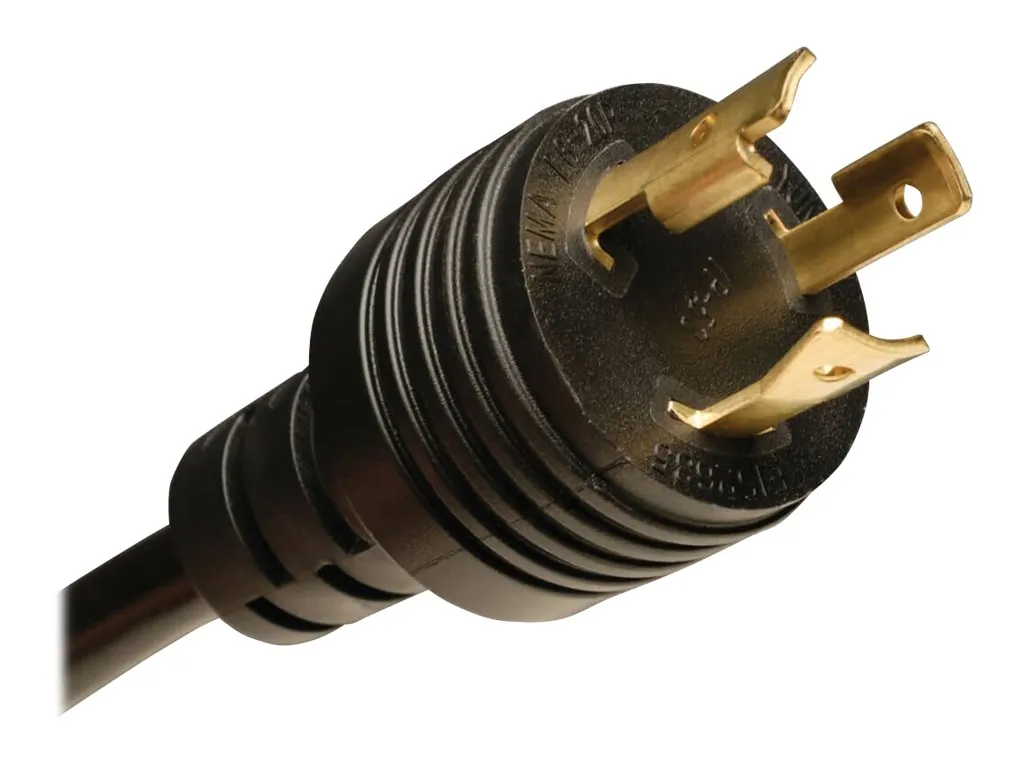

NEMA L6-20P IEC-320 C20
Input cord length (ft.)
12
Input cord length (m)
3.7
Voltage compatibility (VAC)
208/240 230
Phase
Single-Phase
Material of construction
Steel
Style
Rackmount
Form factors supported

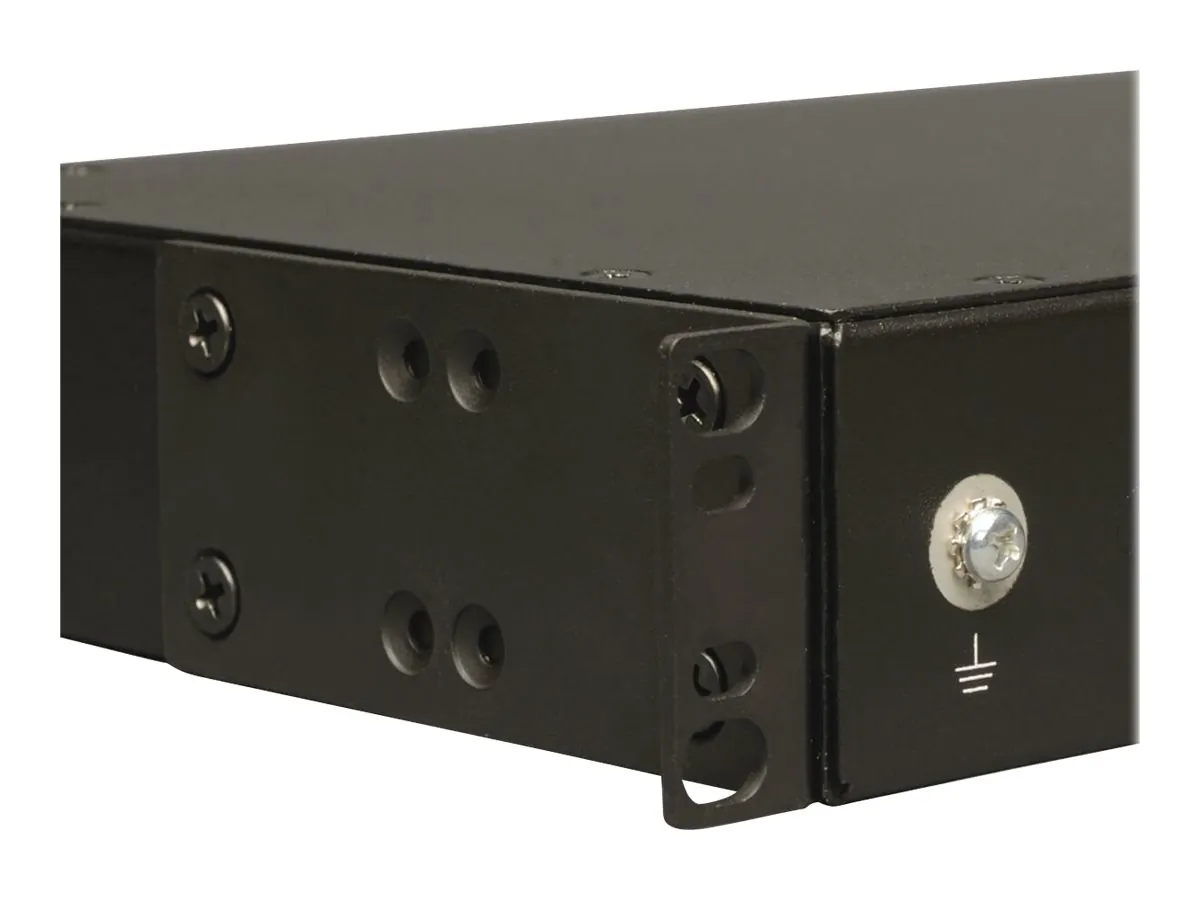

1U rackmount. Includes mounting accessories for 2-4 post racks
PDU Form Factor
Horizontal (1U, 2U, etc) ENVIRONMENTAL
Relative Humidity
0-95% non-condensing CERTIFICATIONS
Certifications
Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), ), CE (IEC 60950), (RoHS compliant) Weight
7.20
Item Dimension
2.25 x 20.5 x 10.5
Warranty Information
2 Years
