Shop Detail
Tripp Lite-TLP604
Tripp Lite-TLP604
Tripp Lite-TLP604
Tripp Lite-TLP604
Tripp Lite-TLP604
Tripp Lite-TLP604 Tripp Lite-TLP604 Tripp Lite-TLP604 Tripp Lite-TLP604 Tripp Lite-TLP604 Tripp Lite-TLP604

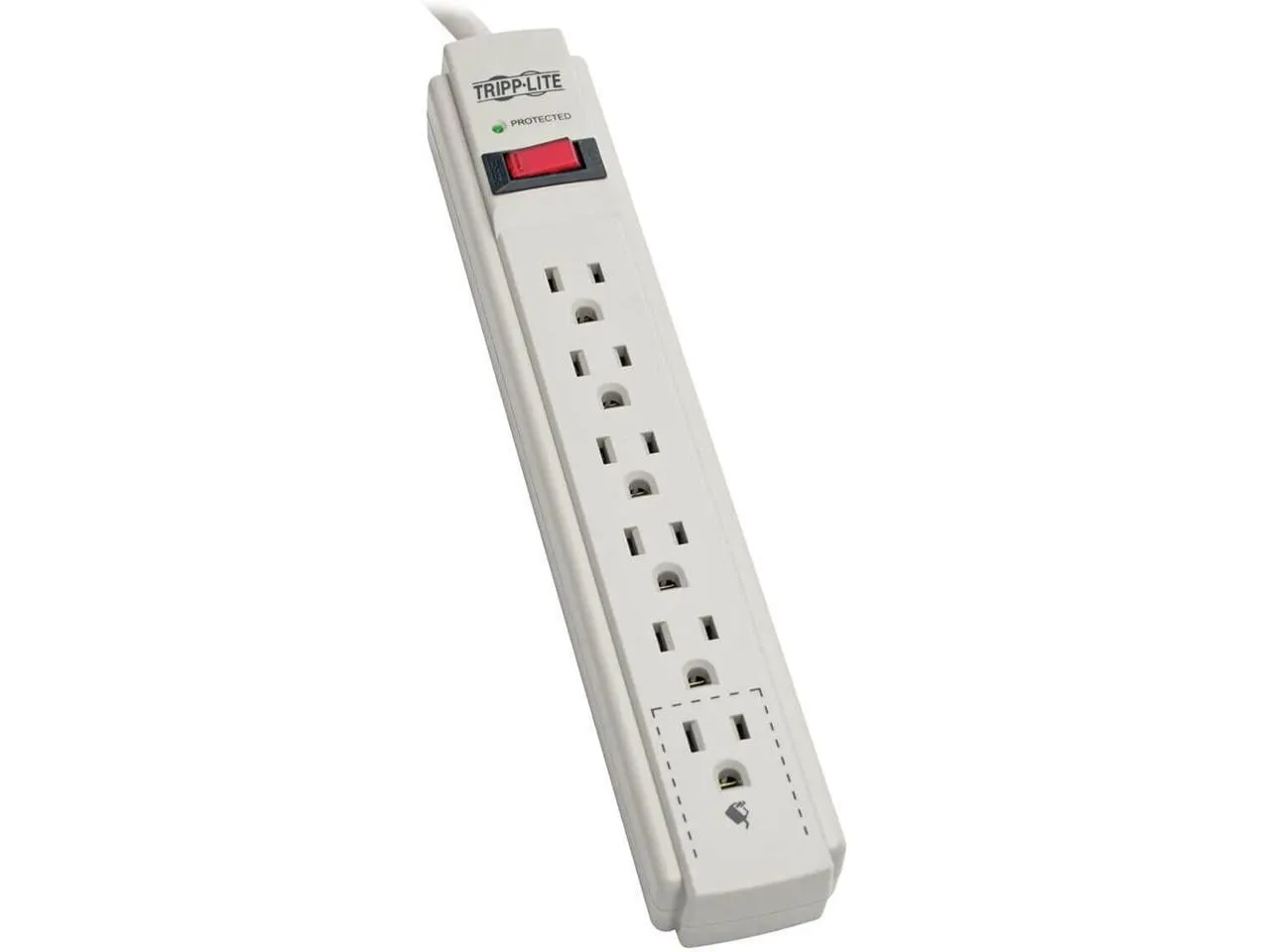

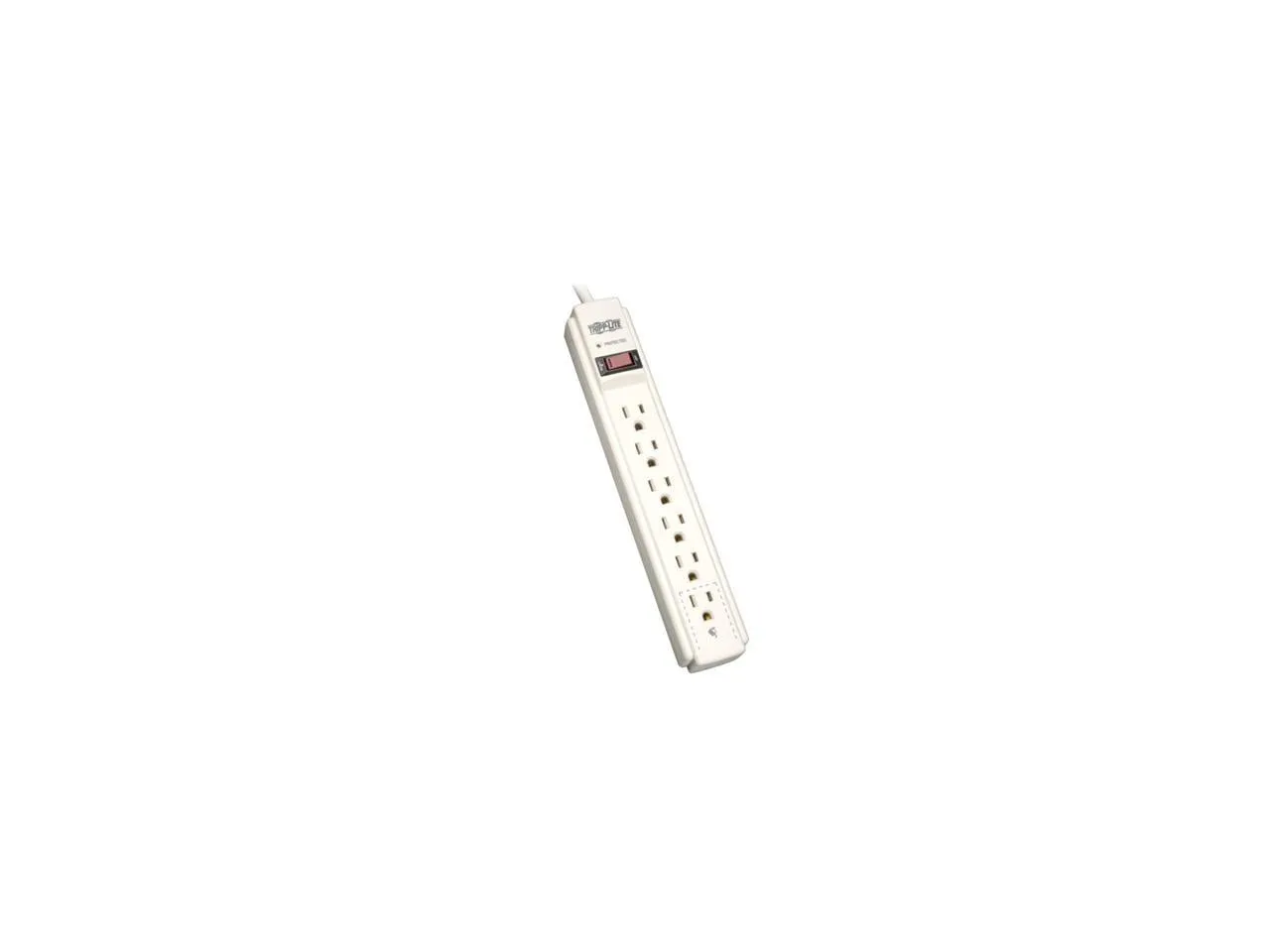

Tripp Lite Surge Protector Power Strip 120V 6 Outlet 4' Cord 790 Joule - 6 x NEMA 5-15R - 1800 VA - 790 J - 120 V AC Input - 120 V AC Output
  • Cost: $26.21
  • Quantity: 71
  • Free Shipping
  • Views:
  • Sold and Shipped By: Aztek Computers

Safeguard your computer, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise. Recommended for any desktop, network or home application requiring AC line protection.



  • UPC Code: 037332100498
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Input Cord Gauge (AWG): 14
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 36000

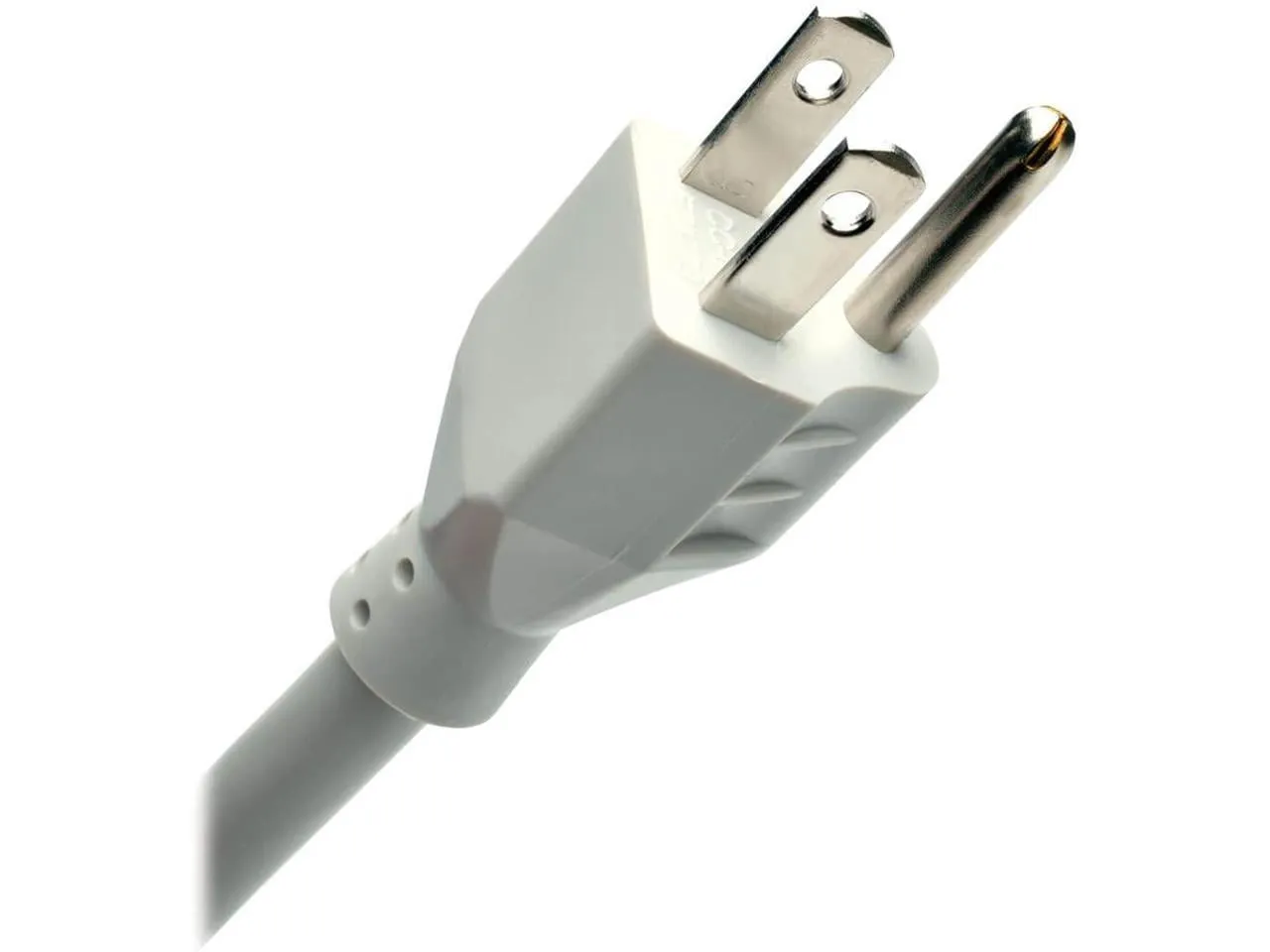

  • Input Plug Type: NEMA 5-15P
  • Input Cord Details: SJT
  • Input Cord Length (ft.): 4
  • Right-Angle Plug: No
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (6) 5-15R
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: (2) Yes
  • Outlet Orientation: Single row
  • Diagnostic LED(s): Yes
  • Switches: Combination AC circuit breaker and 2 position on/off power switch
  • Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
  • AC Suppression Joule Rating: 790
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
  • UL1449 Let Through Rating: 500V
  • EMI / RFI Filtering: Yes
  • Automatic Shut-Off: Yes
  • Network (Ethernet) Protection: No
  • Material of Construction: Plastic
  • Power Cord Color: Light Gray
  • Housing Color: Light Gray
  • Mounting Holes or Slots: Yes
  • Slot or Hole Mount Measurement (Center to Center): Distance between slots = 101 mm; Distance between slot height = 28 mm
  • Outlets Measurement (Center to Center): 28.5mm
  • Receptacle Color: Gray
  • Shipping Dimensions (hwd / in.): 12.60 x 1.60 x 4.90
  • Shipping Weight (lbs.): 1.00
  • Unit Dimensions (hwd / in.): 10.800 x 1.850 x 1.230
  • Unit Weight (lbs.): .80
  • Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 1363; UL Listed
  • Product Compliance: RoHS
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $20,000 Ultimate Lifetime Insurance
General Information
Manufacturer:Eaton Corporation
Manufacturer Part Number:TLP604
Manufacturer Website Address:https://tripplite.eaton.com/
Brand Name:Tripp Lite series
Product Line:Protect It!
Product Name:6-Outlet Economy Surge Protectors
Marketing Information:Surge protector provides economical AC surge suppression for workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP604 offers six total outlets, 15 amp resettable circuit breaker and a 4' cord. AC suppression rated at 790 joules shields equipment from surges and line noise. Diagnostic LEDs confirm surge suppression status. Attractive gray housing with keyhole mounting tabs and one designated transformer plug outlet offers convenient protection of desktop computer equipment and accessories.


Packaged Quantity:1 Each
Product Type:Surge Suppressor/Protector

Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacles:6 x NEMA 5-15R
Protection Type:
  • Spikes
  • Noise
  • Surge

Power Description
Input Voltage:120 V AC
Output Voltage:120 V AC
Maximum Line Current:15 A
Power Handling:1800 VA
Surge Energy Rating:790 J
Circuit Breaker:Yes
Controls/Indicators
Status Indicators:
  • Protection Present

    • Physical Characteristics
    Color Family:Gray
    Product Color:Gray
    Power Cord/Cable Length:4 ft
    Height:1.3"
    Width:1.6"
    Depth:10.4"
    Weight (Approximate):13.60 oz
    Miscellaneous
    Package Contents:
    • Protect It! 6-Outlets Surge Suppressor
    • Instruction Manual with Warranty Information

    Additional Information:
    • Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition

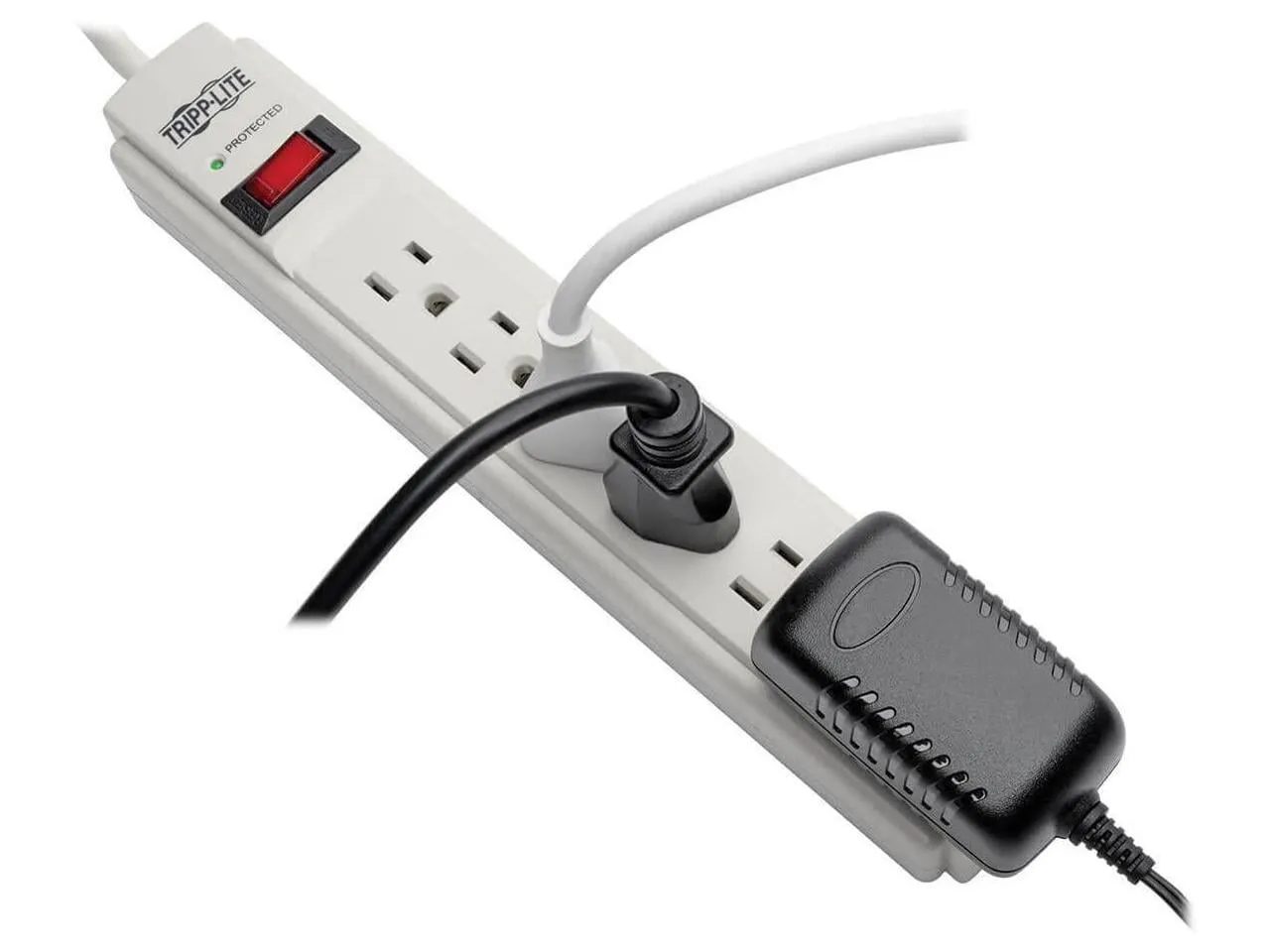

    • Supports 1 large transformer plug accessory without covering remaining outlets, accepts up to 4 transformers total
    • 14 gauge, SJT Input cord
    • Keyhole mounting tabs enable wall mounting

    Compatibility:
    • Workstation
    • Desktop PCs
    • Telecom System

    Certifications & Standards:
    • UL1449 (let through rating 500V)
    • IEEE 587 Category A and B
    • UL1363
    • cUL

    Recycled:No
    Assembly Required:No
    Country of Origin:China
    Environmental Compliance:Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:Lifetime
    Additional Warranty Information:

    • 20,000 Ultimate Lifetime Insurance (USA & Canada Only).
