General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SV565FXDUSA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

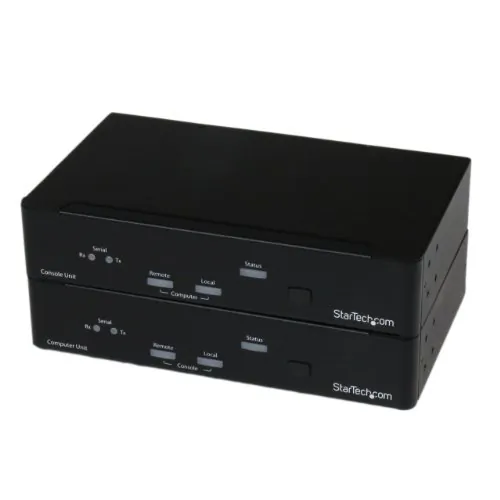

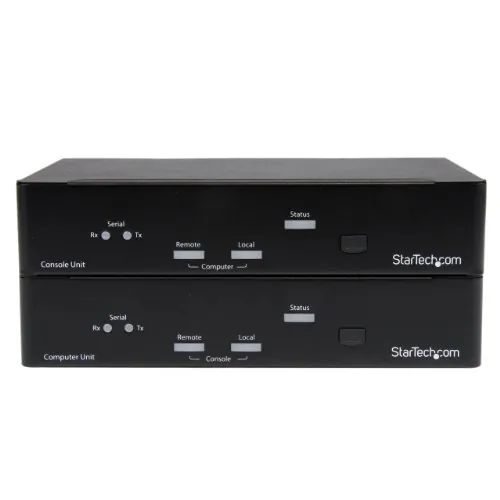

Product Name:USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
Marketing Information:
The SV565FXDUSA USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber (2km) lets you control a server, computer or multiple computers (connected through KVM Switch) over a multi-mode fiber link, at distances of up to 2000m (6562 ft) away.
By transmitting the digital DVI video (or HDMI with a DVI to HDMI adapter) over a multi-mode optical fiber link there is no loss of signal quality, so the video is as sharp and vivid as if the monitor was connected directly to the PC.
For added convenience, the Console/KVM extender supports USB computer connections, and is compatible with any brand of USB KVM Switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Product Type:KVM Console/Extender
Technical Information
Connectivity Technology:Wired
Number of Computers Supported:2
Maximum Operating Distance:6561.68 ft
Video
Graphic Mode:WUXGA
Maximum Video Resolution:1920 x 1200

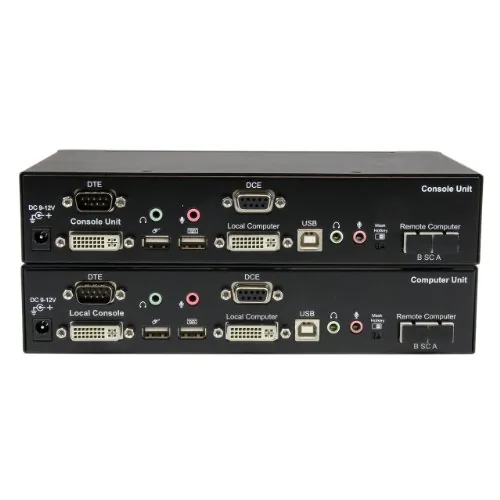

Interfaces/Ports
USB:Yes
DVI:Yes
Number of USB Ports:6
Number of DVI Ports:4
Power Description
Input Voltage:
Input Voltage Range:110V AC to 240V AC
Power Consumption:18 W
Physical Characteristics
Product Color:Black
Form Factor:
Transmitter Height:1.70"
Transmitter Width:8.70"
Transmitter Depth:5.30"
Receiver Height:1.70"
Receiver Width:8.70"
Receiver Depth:5.30"
Transmitter Weight (Approximate):2.20 lb
Receiver Weight (Approximate):2.20 lb
Miscellaneous

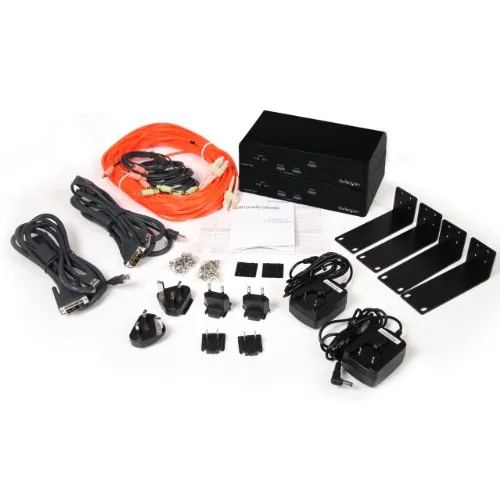

Package Contents:
- 1 x Local Extender Unit
- 1 x Remote Extender Unit
- 4 x Rackmount Brackets
- 1 x 30m (98ft) MM Fiber Cable
- 2 x Sets of DVI USB and Audio Cables
- 1 x Rubber Feet
- 2 x Universal Power Adapter (US/UK/EU)
- 1 x Manual
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:3 Year
