APC by Schneider Electric Smart-UPS SRT 6000VA RM 208V - 4U Rack-mountable - 1.50 Hour Recharge - 2 Minute Stand-by - 208 V AC Input - 208 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-20R, 3 x NEMA L6-30R
  • Cost: $4874.95
  • Quantity: 1
  • Free Shipping
  • Views:
  • Sold and Shipped By: Aztek Computers

The part number SRT6KRMXLT refers to the APC Smart-UPS SRT 6000VA RM 230V. This is a high-performance Uninterruptible Power Supply (UPS) designed for rack-mounted servers, networking equipment, and other critical IT infrastructure requiring robust power protection.

Product Description

The APC Smart-UPS SRT 6000VA RM (SRT6KRMXLT) is a 6000VA/6000W rack-mountable UPS that delivers premium power protection for demanding applications. Its double-conversion online topology isolates connected equipment from all power disturbances, providing the highest level of power quality. The UPS features a user-friendly LCD display for real-time status updates and easy configuration. It offers scalable runtime with external battery packs and intelligent battery management to maximize battery performance and lifespan. The high-efficiency 'green mode' helps reduce energy consumption and operating costs.

Product Specifications

  • Topology: Double-Conversion Online
  • VA Rating: 6000 VA
  • Wattage: 6000 W
  • Output Voltage: 230V
  • Output Voltage Distortion: Less than 2% at full load
  • Output Frequency (sync to mains): 47-53 Hz for 50 Hz nominal, 57-63 Hz for 60 Hz nominal
  • Output Connections: (6) IEC 60320 C13, (3) IEC 60320 C19
  • Input Voltage Range: 160 - 286 V
  • Input Frequency: 40 - 70 Hz (auto sensing)
  • Input Connection: Hard Wire 3-wire (1P+N+E)
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
  • Typical Backup Time at Half Load: 14 minutes
  • Typical Backup Time at Full Load: 5 minutes
  • Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial SmartSlot, USB
  • SmartSlot: Yes

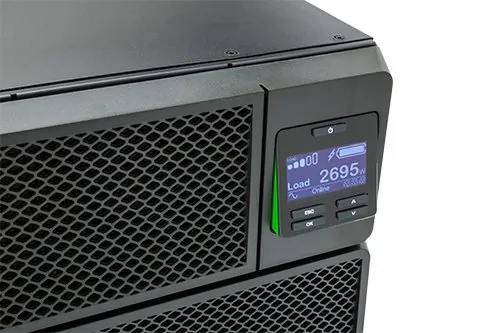

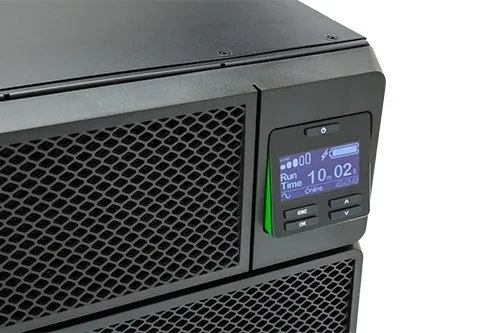

  • Control panel: Multifunction LCD status and control console
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO): Yes
  • Surge Protection: Yes
  • Efficiency at Full Load: 94%
  • Operating Temperature: 0 - 40 rC
  • Storage Temperature: -15 - 45 rC
  • Relative Humidity: 0 - 95% non-condensing
  • Audible Noise at 1 meter: 55 dBA
  • Dimensions (H x W x D): 8.5 x 17.0 x 26.0 inches (216 x 432 x 660 mm)
  • Weight: 128 lbs (58.1 kg)
  • Mounting: Rack-mountable (5U)
  • Conformance: CE, EAC, GS Mark, IRAM, RCM, VDE

Package includes:
New, APC SRT6KRMXLT, Rack Mounting Brackets, Rack Mounting Rails, Temperature Probe, USB Cable, Software, Manual
Product may differ from image shown
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SRT6KRMXLT
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS On-Line
Product Name:Smart-UPS SRT 6000VA RM 208V
Marketing Information:

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Product Type:Double Conversion Online UPS

Technical Information
Receptacle Type:
  • Hard Wire 3-wire (2PH + G)
  • NEMA L6-20R
  • NEMA L6-30R

Receptacle Detail:
  • 1 x Hard Wire 3-wire (2PH + G)
  • 2 x NEMA L6-20R
  • 3 x NEMA L6-30R

Power Description
Load Capacity:6000 VA/6000 W
Input Voltage:208 V AC
Output Voltage:208 V AC
Waveform Type:Sine Wave
Battery Information
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):2 Minute
Typical Battery Recharge Time:1.50 Hour
Physical Characteristics
Product Color:Black
Height:6.9"
Width:17"
Depth:28.3"
Rack Height:4U
Form Factor:Rack-mountable
Weight (Approximate):135 lb
Miscellaneous
Package Contents:
  • Smart-UPS SRT 6000VA RM 208V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card

  • Energy Star:Yes
    Environmentally Friendly:Yes
    Environmental Certification:
    • RoHS
    • REACH
    • ENERGY STAR

    Warranty
    Limited Warranty:3 Year
