Output
Output power capacity: 1.8 KWatts / 2.2 kVA
Max Configurable Power (Watts): 1.8 KWatts / 2.2 kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Output Connections:
(6) NEMA 5-20R (Battery Backup)
(1) NEMA L5-20R (Battery Backup)
Bypass: Built-in Bypass Input
Nominal Input Voltage: 120V
Input frequency: 40 - 70 Hz (auto sensing)
Input Connections: NEMA 5-20P
Cord Length: 6ft ( 1.83meters )
Number of Power Cords: 1 Batteries and Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules: 1
Typical recharge time: 3hour(s)
Replacement Battery: APCRBC141
Expected Battery Life (years) : 3 - 5
RBC Quantity: 1
Extendable Run Time: 1
Battery Volt-Amp-Hour Capacity: 306
Extended Run Options: APC-Smart-UPS-SRT-2200VA-RM-120V-Network-Card
Runtime: View Runtime Graph
Efficiency: View Efficiency Graph Communications and Management

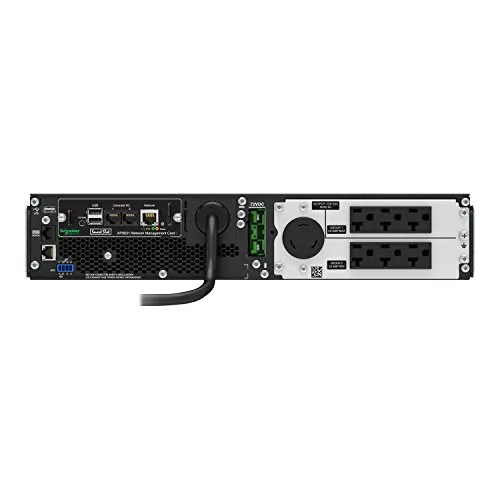

Interface Port(s) : RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Pre-Installed SmartSlot Cards: AP9631
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes Surge Protection and Filtering
Surge energy rating: 340Joules
Filtering: -- Rack Height
2U Color
Black Environmental
Operating Environment: 32 104oF ( 0 - 40oC )
Operating Relative Humidity: 0 - 95% non-condensing %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -20 - 50oC
Storage Relative Humidity: 0 - 95% non-condensing %
Storage Elevation: 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 535.0BTU/hr
Protection Class: IP 20 Conformance
Approvals: CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778 Sustainable Offer Status
RoHS: Compliant
REACH: Contains No SVHCs Item Dimension (L inchxW inchxH inch)
32 x 24 x 10
Weight
75.00 lb
Warranty Information
3 Years Repair or Replace (Excluding Battery) and 2 Years for Battery
