Output
Output Power Capacity
2700 Watts / 2880 VA
Max Configurable Power
2700 Watts / 2880 VA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Sine wave

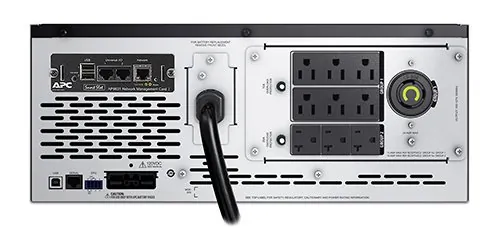

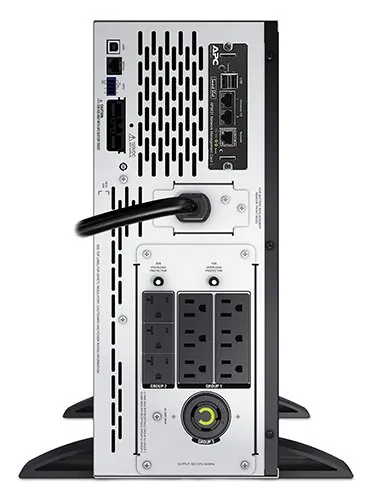

Output Connections
(6) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-30R Input
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA L5-30P
Cord Length
2.44 meters
Input voltage range for main operations
70 - 153V
Transfer Time
2-4 ms Batteries Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
APCRBC143
RBC Quantity
1
Extended Run Options
APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card Communications Management
Interface Port(s)
SmartSlot
Pre-Installed SmartSlot Cards
AP9631
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes Surge Protection and Filtering
Surge energy rating
540 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection
-- Conformance
Regulatory Approvals
BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Battery Directive
Compliant
Battery Notes
Contains Lithium Coin Cell Weight
105.00
Item Dimension
24.94 x 23.06 x 13.00
Warranty Information
3 Years Repair or Replace (Excluding Battery) and 2 Years for Battery Optional Extended Warranties Available, Optional On-Site Warranties Available
