Powered by 5G Wi-Fi and NitroQAM™ technology, the RT-AC3100 instantly takes your wireless network to the next level by booting Wi-Fi speeds to everyone and everything on your busy network. With its wide range, lightning-fast USB and WAN/LAN speed, the top-of-the-line RT-AC3100 is an incredibly well-rounded rounder.
Disclaimer: Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
Wireless AC3100 Gigabit Router
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
Product Segment
AC3100 ultimate AC performance : 1000+2167 Mbps
Coverage
Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 1000 Mbps
1024QAM (5GHz) : up to2167 Mbps
Antenna
External antenna x 4
Transmit/Receive
MIMO technology
2.4 GHz 4 x 4
5 GHz 4 x 4
Processor
1.4 GHz dual-core processor
Memory
128 MB Flash Wi-Fi Technology
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall and Access Control
Access controlParental control, Network service filter, URL filter, Port filter
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Utilities
Router setup wizard Firmware restoration Device discovary printer setup utility

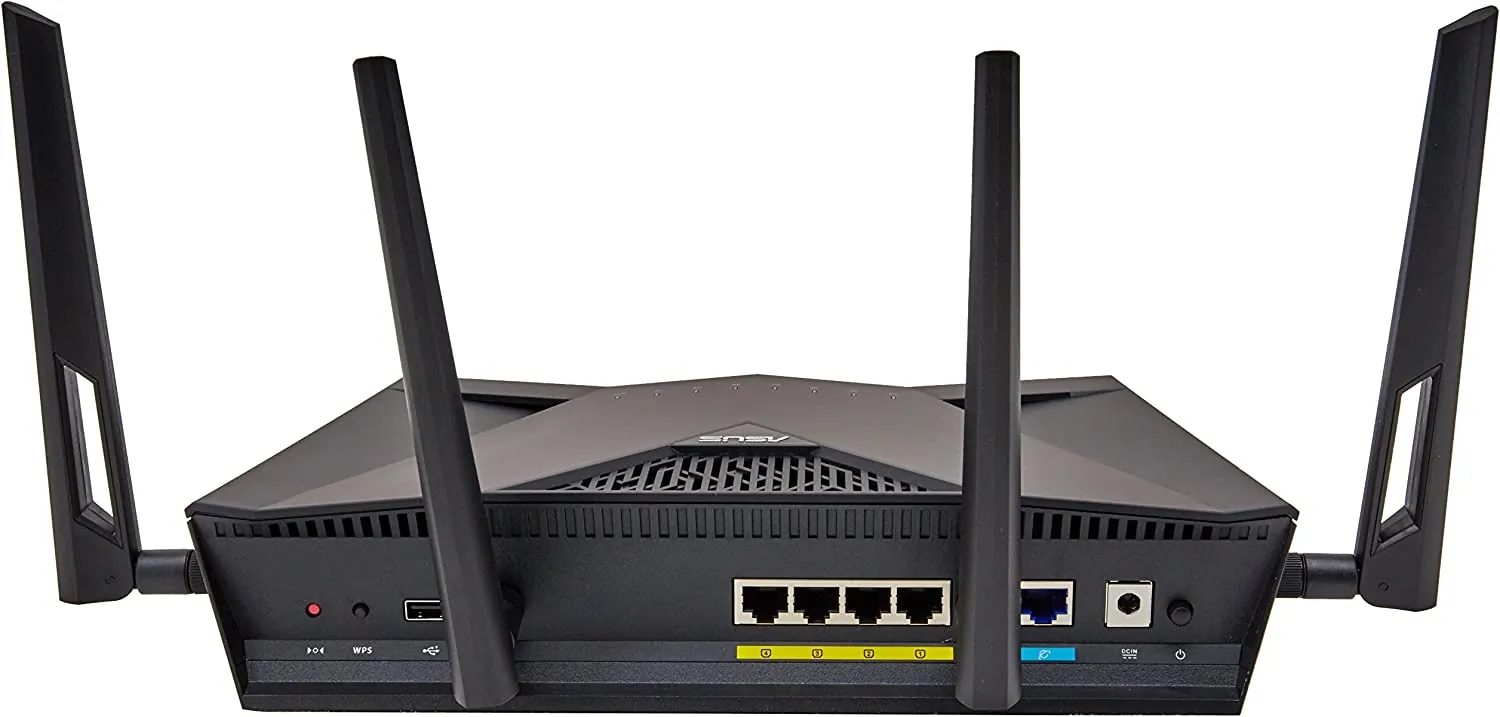

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1
Button
WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button
LED Indicator
Power x 1
Wi-Fi x 2
WAN x 1
USB x 2
WPS x 1
LAN x 1
Power Supply
AC Input : 110V240V(5060Hz)
DC Output : 19 V with max. 2.37 A current
Item Dimension (L"xW"xH")
16 x 11 x 6
