General Information
Manufacturer:StarTech.com
Manufacturer Part Number:QSFP40LR4ST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

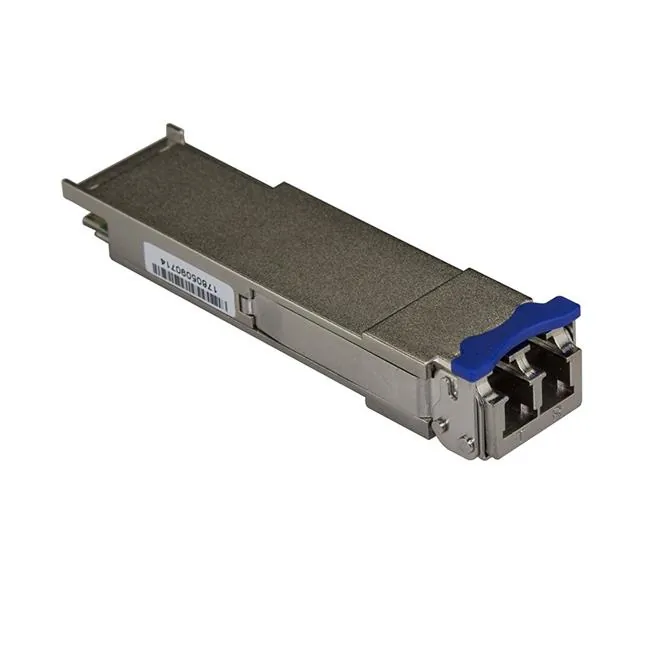

Product Name:QSFP+ Module
Marketing Information:
The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1270nm to 1330nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 2.5 Watts
- DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Packaged Quantity:1
Product Type:QSFP+
Technical Information
Application/Usage:
- Optical Network
- Data Networking
Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 40GBase-LR4 Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:40 Gigabit Ethernet
Network Technology:40GBase-LR4
Physical Characteristics
Form Factor:Hot-swappable
Height:0.5"
Width:0.7"
Depth:2.8"
Weight (Approximate):0.09 lb
Miscellaneous
Compatibility:MSA Compliant
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:China
Warranty
Limited Warranty:Lifetime
