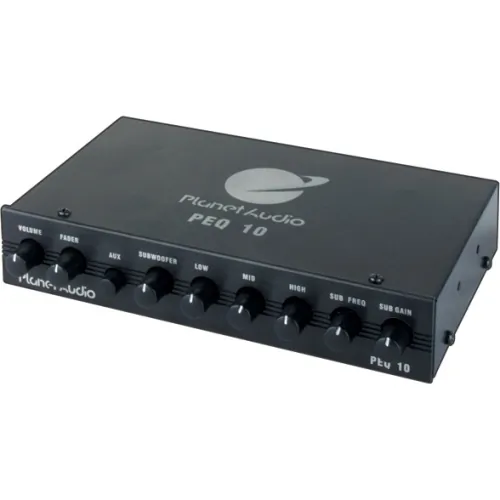

Audio ConnectionsView larger How An Equalizer Is Used The Planet Audio PEQ10 parametric equalizer is a high-fidelity signal processor/preamplifier that allows you to control the relative levels within the audible frequency spectrum of a stereophonic system. It is intended for use in a car audio system which includes amplifiers in a signal path after the equalizer, and provides front, rear, and subwoofer low level outputs via RCA connectors. Specifications EQ center frequencies: 75Hz – 200Hz – 2kHz – 20kHzEqualization range: +/- 18 dB (boost/cut)Frequency response: 20Hz – 20kHzSubwoofer crossover frequency: Variable 45 – 180HzSignal to noise ratio: 105 dBTHD: 0.05%Subwoofer channel THD: 0.05%Channel separation: 60 dBLow Level Input Voltage: 0.5 VDefeat/Equalizer: 0 dB/ +/-1 dBPower supply: 10-16V negative groundOutput voltage: 7V RMS
? Half-DIN;? 4-band adjustment ;? Subwoofer output with adjustable crossover ;? Subwoofer level control ;? Aux input ;? Master volume control ;? Fader control ;? Input sensitivity adjustment ;? DC to DC power supply ;? Signal-to-noise ratio: 100dB ;? Night illumination ;? Half-DIN chassis;
