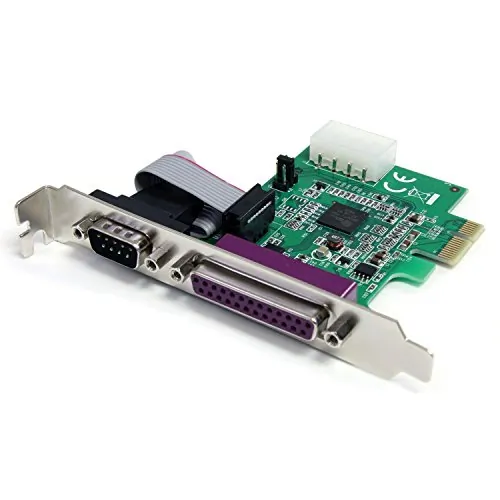

T - PCI EXPRESS SERIAL PARALLEL CARD - PCI EXPRESS SERIAL CARD - PCI EXPRESS PAR
Bus Type :PCI Express

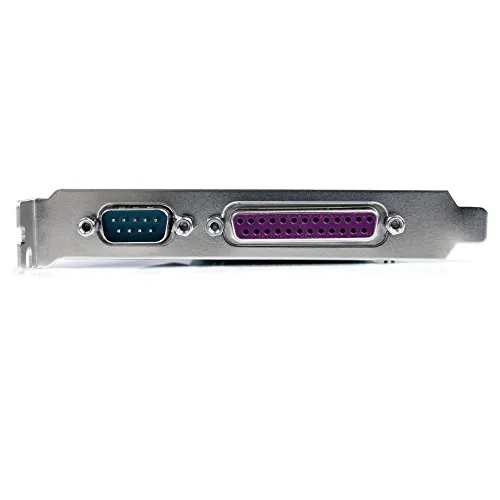

Connector Type(s) :1 - DB-25 (25 pin D-Sub) Female
Connector Type(s) :1 - DB-9 (9 pin D-Sub) Male Number of Ports :2
Card Type :Low / Standard Profile
Maximum Data Transfer Rate :
1.5Mbps - Parallel
115.2Kbps - Serial Data Bits :5, 6, 7, 8, 9
Stop Bits :1, 1.5, 2
FIFO :128-Byte Parity :Even, Odd, Mark, Space, None
Flow Control :Automated in-Band, Xon/Xoff
Power Consumption :200mW Industry Standards :
PCI Express base spec 1.1
PCI Power Management 1.2
IEEE 1284-compliant SPP/EPP/ECP Chipset ID :PLX OXPCIe952
Microsoft WHQL Certified :Yes
OS Compatibility :
Windows 7(32/64bit)/ Server 2008 R2/ Vista(32/64bit)/ XP(32/64bit)/ Server 2003(32/64bit)/ Server 2000 and Linux 2.6.x Item Dimension (L"xW"xH"):
6.89 x 5.63 x 1.22
Weight:
0.32 lb
Warranty Information
Lifetime
