ELO-E458919
ELO-E458919 ELO-E458919

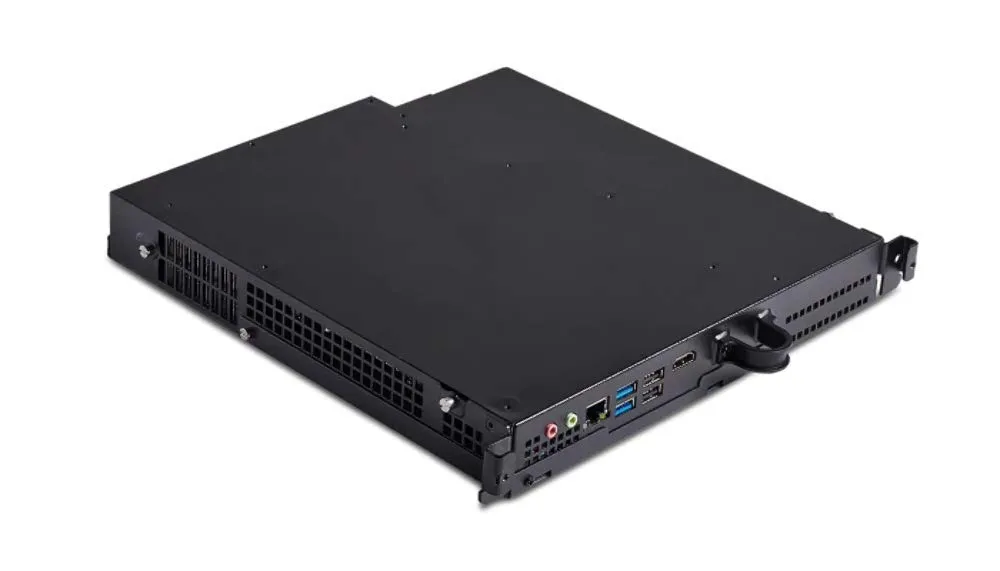

ELO KIT ECMG3 Intel i5 Windows 10 Premium Power Supply
  • Cost: $1274.78
  • Quantity: 44
  • Free Shipping
  • Views:
  • Sold and Shipped By: eforgo

The ELO KIT ECMG3 is a robust power supply designed for optimal performance in computing systems. Featuring advanced protection mechanisms and high efficiency, this power supply unit ensures reliability and stability for your PC components. Its compatibility with various devices makes it a versatile choice for users seeking a dependable power source.
  • Specifications compliance: TFX 12V v2.31
  • Pentium 4 ready with P4 connectors
  • Forward converter circuit for improved performance
  • High efficiency and reliability
  • Low ripple and noise level
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hipot test
  • 100% burn-in high temperature cycled on/off
  • Total Power: 300 W
  • Input Voltage: 100-240 V
  • Input Frequency Range: 47 - 63 Hz
  • Input Current: 5A max
  • Inrush Current: 100A max cold start
  • Holdup Time: 12 ms
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB, EMIRFI, CE, FCC, Ctick certified
  • Output: 3.3V @ 20A, 5V @ 20A, 12V @ 21A, 12V @ 0.8A, 5Vsb @ 2A
  • Connectors: 1x 20/24 pin Main, 1x 4 pin 12V CPU, SATA, HDD, FDD
  • Cooling System: 1x 8cm Double Ball Bearing Fan
  • Dimensions: WxLxH 3.3 x 6.9 x 2.8 inches (85 x 175 x 70 mm)
  • RoHS Compliant
