{'Part Number': 'SMART3000RMXL2U', 'Brand': 'Tripp Lite by Eaton', 'Product Type': 'Uninterruptible Power Supply (UPS)', 'Series': 'SmartPro Line-Interactive Sine Wave UPS', 'VA Rating': '3000 VA', 'Wattage': '3000 W', 'Form Factor': 'Rack/Tower Convertible (2U)', 'Nominal Input Voltage': '120V AC', 'Nominal Output Voltage': '120V AC', 'Power Factor': 'Unity (1.0)', 'Connectivity': 'USB, RS-232 (Serial), EPO, SmartSlot for Network Management Card (optional)', 'Energy Star Certified': 'Yes (ENERGY STAR 2.0)', 'Warranty': "2-Year Manufacturer's Warranty (upgradeable to 3-Year with registration), $250,000 Connected Equipment Insurance"}

Product Description

The Tripp Lite SMART3000RMXL2U is a high-performance 3000VA/3000W line-interactive uninterruptible power supply (UPS) designed to provide reliable battery backup and comprehensive AC power protection for critical IT equipment in demanding business environments. Ideal for servers, networking equipment, VoIP systems, and data storage, this UPS features a unity (1.0) power factor, ensuring that the full 3000 watts of power are available for connected devices. It delivers pure sine wave output to maintain compatibility with sensitive electronics and includes Automatic Voltage Regulation (AVR) to correct brownouts and overvoltages within a wide input range (80V to 151V), preserving battery life and protecting hardware. The SMART3000RMXL2U offers a convenient 2U rack/tower convertible design with an intuitive front-panel LCD that provides real-time UPS and site power data, as well as customizable setup options. It includes multiple NEMA outlets, including a NEMA L5-30R and six managed 5-20R outlets, allowing for load shedding and remote reboot capabilities. For advanced network management, an optional WEBCARDLXE network management card can be added (sold separately), enabling remote monitoring, control, and automated shutdowns. The hot-swappable, user-replaceable internal batteries and optional extended battery modules (sold separately) provide scalable runtime for prolonged outages. This ENERGY STAR 2.0 certified UPS operates with high line-mode efficiency, reducing heat emissions and lowering operating costs.

Product Specifications

• Output Volt Amp Capacity (VA): 3000 VA
• Output Watt Capacity (Watts): 3000 W
• Power Factor: 1.0
• Output Voltage (Battery Mode): 120V AC nominal (configurable for 110V, 115V)
• Output Waveform (Battery Mode): Pure Sine Wave
• Nominal Input Voltage: 120V AC
• Input Connection Type: NEMA L5-30P
• Input Cord Length: 10 ft (3.05 m)
• Recommended Electrical Service: 30A 120V
• Output Receptacles: ['1x NEMA L5-30R', '6x NEMA 5-15/20R (managed, in two programmable load banks)']
• Automatic Voltage Regulation (AVR): Corrects brownouts (80V-108V) and overvoltages (127V-151V)
• Transfer Time: 5 ms (typical)
• Battery Type: Sealed Lead-Acid (VRLA), Hot-swappable, User-replaceable
• Typical Battery Recharge Time: Less than 5 hours (to 90% from 10% discharge)
• Expandable Runtime: Yes (with optional external battery modules like BP72VRM2U)
• Network Management Interface: USB, RS-232, Emergency Power Off (EPO) port, Slot for optional Network Management Card (WEBCARDLXE)

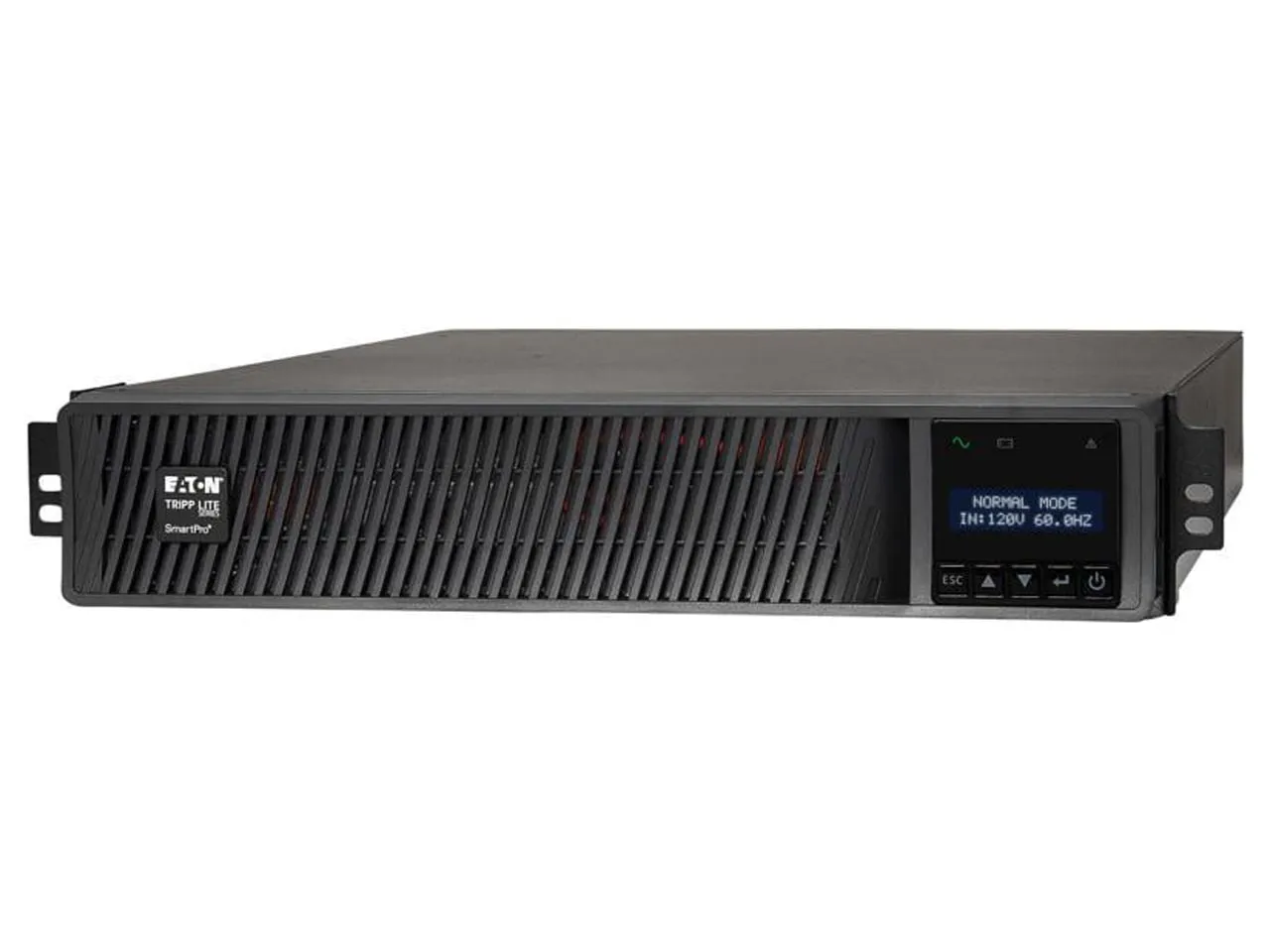

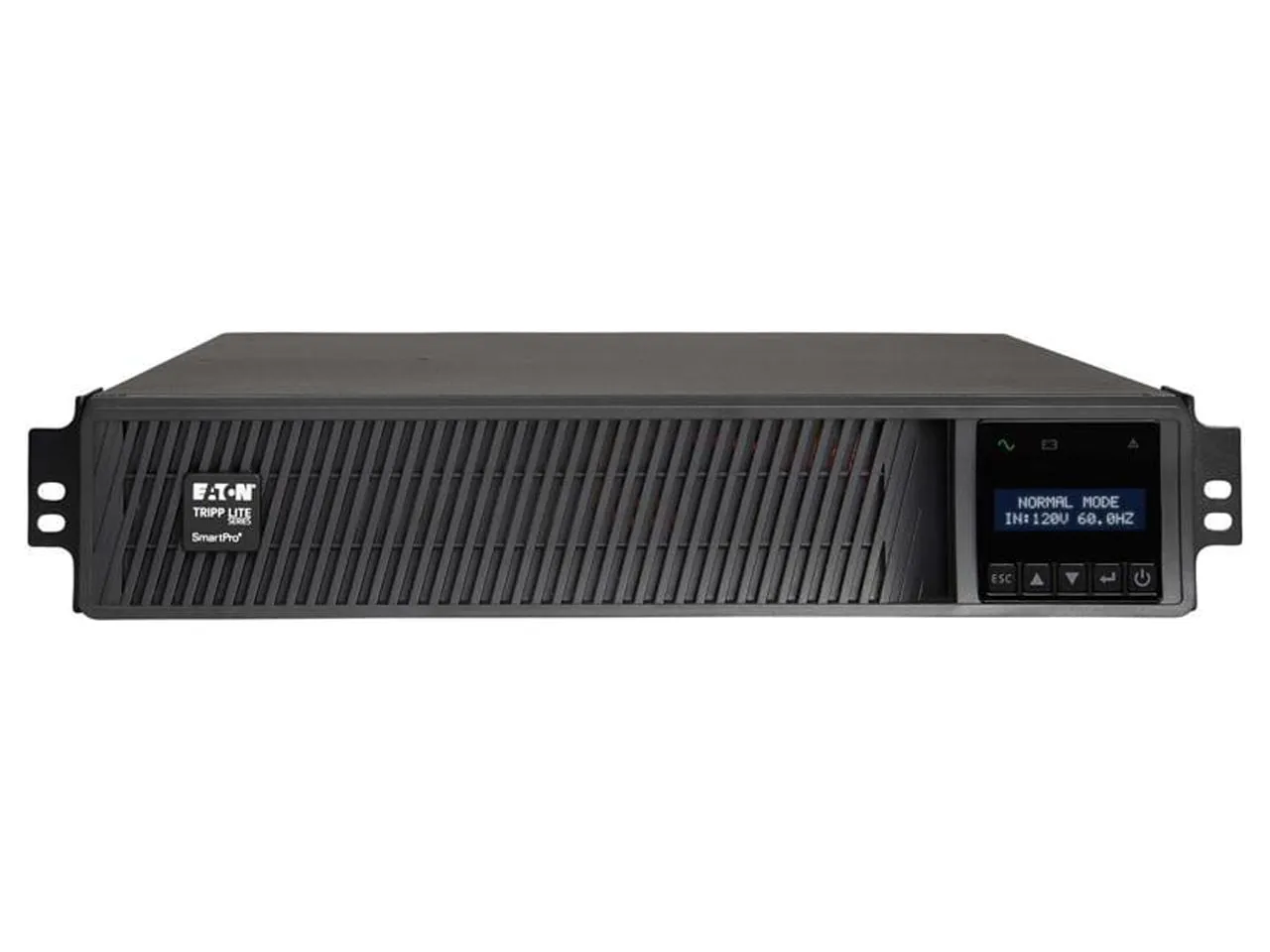

• Display: Front-panel LCD with 10 selectable screens for UPS data and configuration
• Alarms: Audible alarm for power-failure, low-battery, overload, UPS fault
• Surge Suppression: 570 Joules
• EMI/RFI Filtering: Yes
• Rack Height: 2U
• Dimensions (H x W x D): {'Imperial': '3.5 x 17.5 x 19 inches (UPS module)', 'Metric': '89 x 445 x 483 mm (UPS module)'}
• Weight: {'Imperial': '72.8 lbs (UPS power module)', 'Metric': '33.02 kg (UPS power module)'}
• Operating Temperature: 32 to 104?F (0 to 40?C)
• Operating Humidity: 0 to 95% non-condensing
• Audible Noise: 45 dBA maximum (at 1m from front)
• Efficiency (Line Mode): 96% (at 100% load)

• Plug/Connector Type: NEMA L5-30P
• Receptacles: 1 x NEMA L5-30R
• Receptacles: 8 x NEMA 5-15/20R
• Interfaces/Ports: USB
• Interfaces/Ports: DB-9 Serial
• Network Management: SNMP Manageable Optional
• Batteries: User Replaceable Hot-swappable
• Backup/Run Time: 0.05 Hour 2.88 kW Full Load
• Backup/Run Time: 0.17 Hour 1.44 kW Half Load
• Battery Recharge Time: <5 Hour
• Load Capacity: 3 kVA/2.88 kW
• Input Voltage: 110 V AC
• Input Voltage Range: 120 V AC Nominal
• Output Voltage: 120 V AC Nominal
• Height: 3.5"
• Width: 17.5"
• Depth: 19.0"
• Form Factor: 2U Rack-mountable
• Weight (Approximate): 64.00 lb
