Wichard 6mm Captive Pin D Shackle - Stainless Steel

This robust captive pin D shackle is crafted from premium grade 316L stainless steel, ensuring durability and resistance to corrosion. The unique design keeps the pin attached to the body, preventing accidental loss and providing peace of mind during use.

Robust Construction:

• Constructed from grade 316L stainless steel for superior strength and longevity.
• Integrated pin connection eliminates risks of losing the pin during operation.
• Pin is secured in place, reducing the risk of loosening due to vibrations.
• Engineered for both high working loads and breaking loads, making it reliable for various applications.

Versatile Applications:

• Ideal for standard shackle applications.
• Perfect for attachment purposes, including blocks and more.

Specifications:

• Working load: 1490 lb
• WLL (Working Load Limit): 970 lb
• Breaking load: 4850 lb
• Weight: 0.062 lb

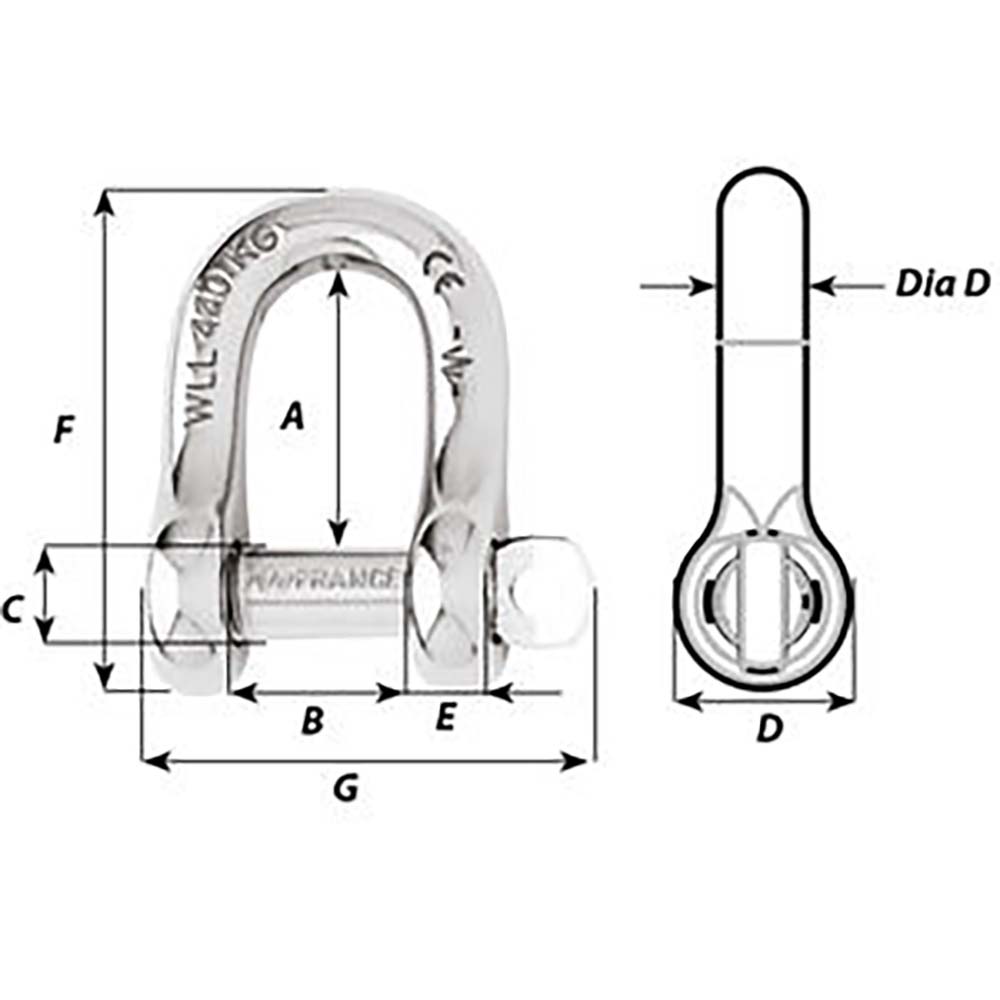

Dimensions:

• A: 25/32"
• B: 15/32"
• C: 9/32"
• D: 35/64"
• D diameter: 15/64"
• E: 15/64"
• F: 1-27/64"
• G: 1-17/64"
