Product Information

• Part Number: VIP-422A-IC
• Manufacturer: Valcom, Inc.
• Product Line: Valcom InformaCast
• Model: VIP-422A-IC
• SKU: VIP-422A-IC
• Color: White
• Warranty: 1-year limited warranty

Product Description

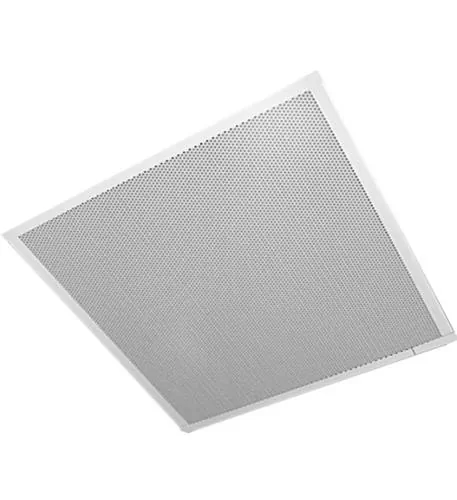

The Valcom VIP-422A-IC is an InformaCast Compliant Lay-In Talkback IP Ceiling Speaker. This 2' x 2' ceiling tile replacement speaker allows for voice access to a single zone of paging over an IP-based network, extending paging capabilities anywhere on the network. It supports two-way communication (talkback) and integrates with InformaCast servers for output level control, emergency alerts, and tones. The speaker features a high-efficiency Class-D amplifier and a durable steel grille with a white baked enamel finish, blending seamlessly with most ceiling environments. Power is supplied via Power over Ethernet (PoE) 802.3af, eliminating the need for local power.

Product Specifications

• Speaker Element: 8-inch (203mm) cone diameter, 45 Ohms voice coil impedance
• Audio Output: > 100 dB @ 4ft (1.22 m) rating
• Frequency Response: 80 Hz to 15 kHz
• Connectivity Technology: Wired (Ethernet)
• Network Connection: RJ-45 (10/100 Mbps Ethernet), DHCP or manual IP address setup, NTP for time synchronization
• Power Requirements: Power over Ethernet (PoE) 802.3af compliant (no local power required)
• Amplification Type: Active (Integrated Class-D Amplifier)
• VoIP Protocols: SIP (RFC3261)
• Audio Codecs: G.711 u-law, others
• Compatibility: InformaCast (Singlewire InformaCast Server), SIP-enabled telephone systems, Valcom M Cast Page Group
• Features: Talkback intercom, Paging, Emergency Alerts, Tones, High-Quality Audio, Two-Way Communication, Line Output supports Valcom Amplified Speakers (-10dBm Line Level Out can connect to up to 40 Valcom Self Amplified Speakers), Call Switch input, LED indicators for call progress
• Housing and Finish: Steel housing with white baked-on acrylic enamel finish
• Mounting Type: 2' x 2' Lay-in Ceiling Tile Replacement
• Dimensions (L x W x D): 23.75 inches x 23.75 inches x 3.75 inches (60.33 cm x 60.33 cm x 9.53 cm)
• Product Weight: 5.5 lbs (2.49 kg)
• Operating Temperature: 0 to +40? C (32 to +104 ?F)
• Humidity: 0 to 85% non-precipitating
• Certifications: UL and cUL Listed, FCC Class A compliant, ASTM E84 flame and smoke test (backbox)
