General Information
Manufacturer:Eaton Corporation
Manufacturer Part Number:SMART1000LCD
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite by Eaton
Product Line:SmartPro

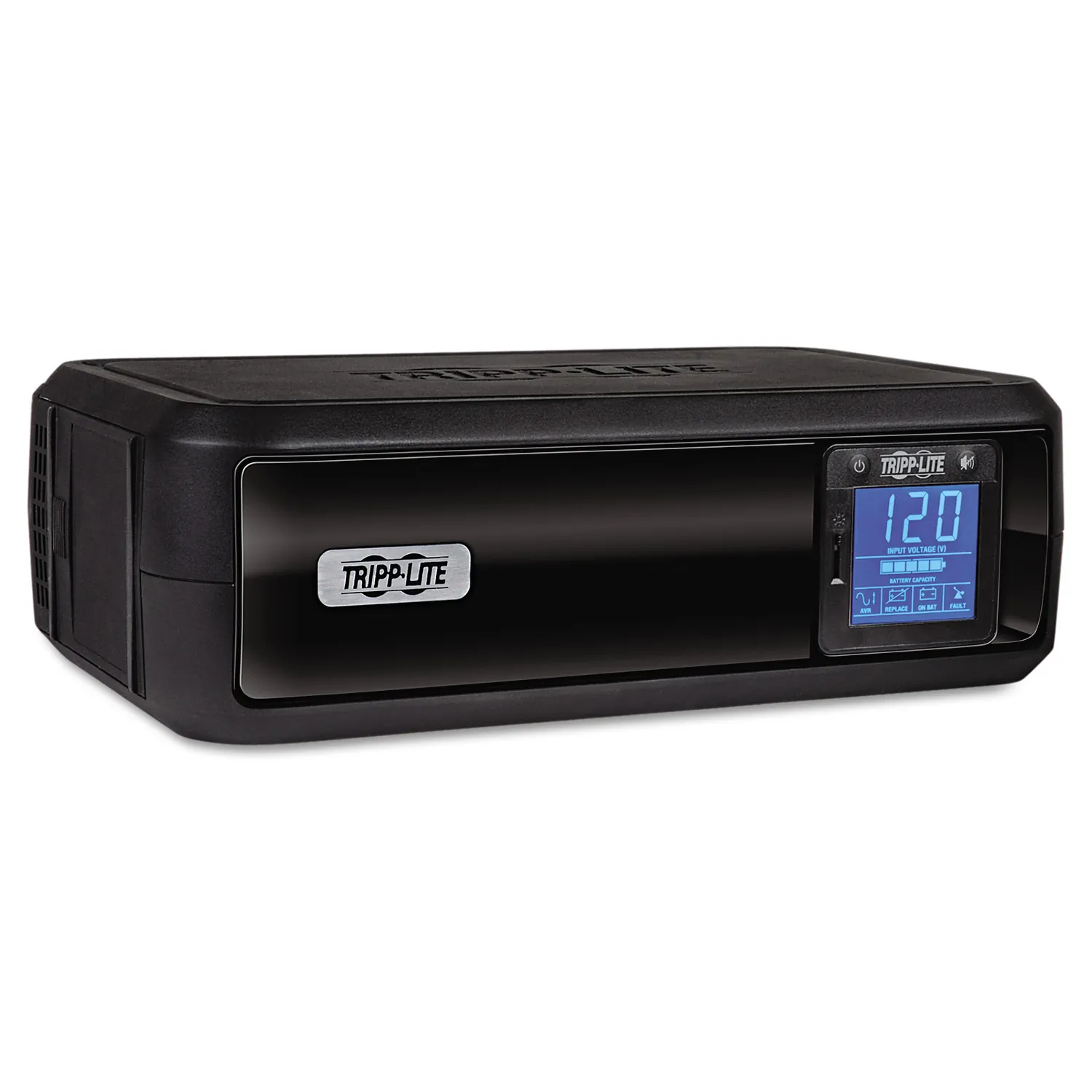

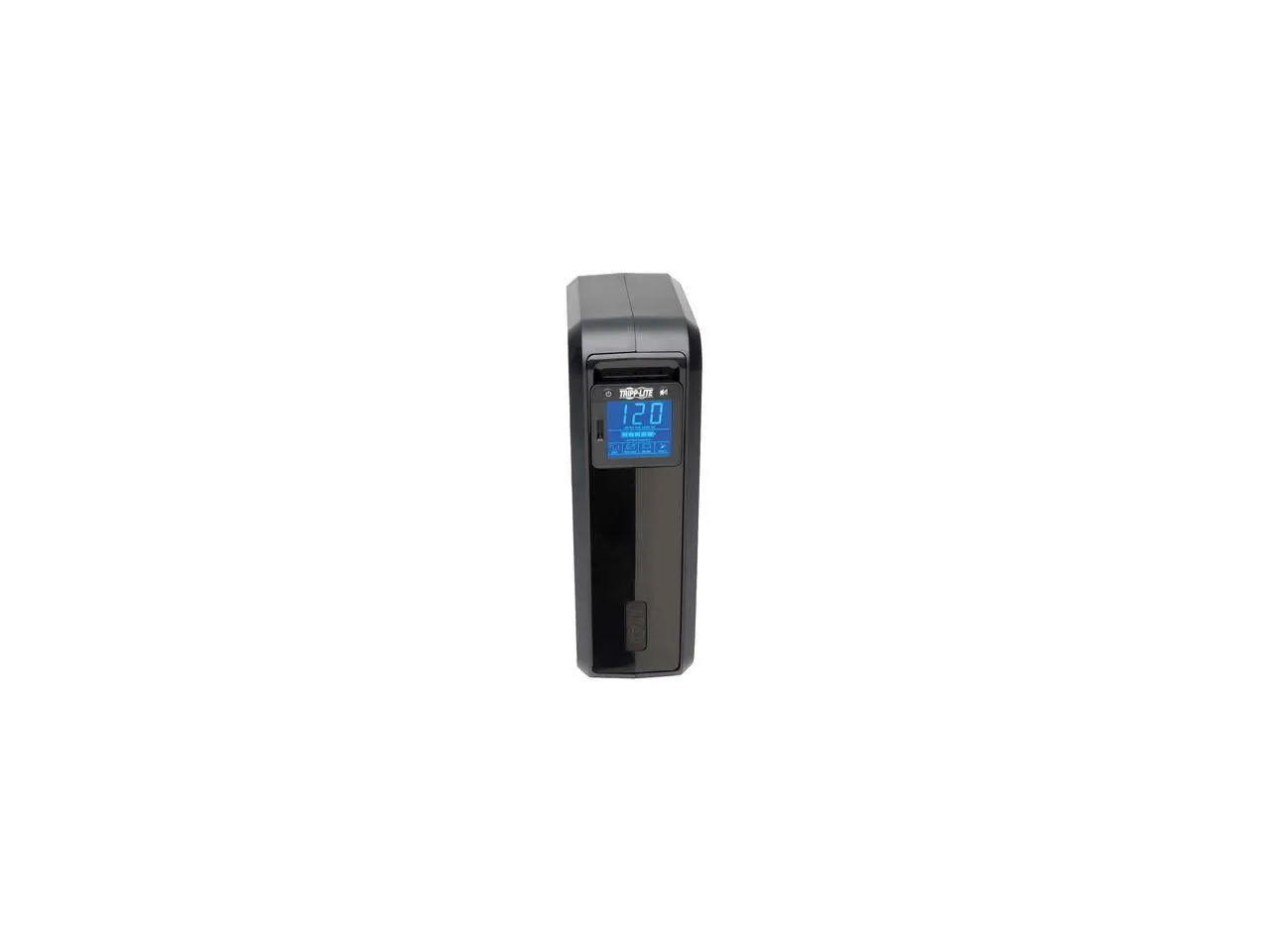

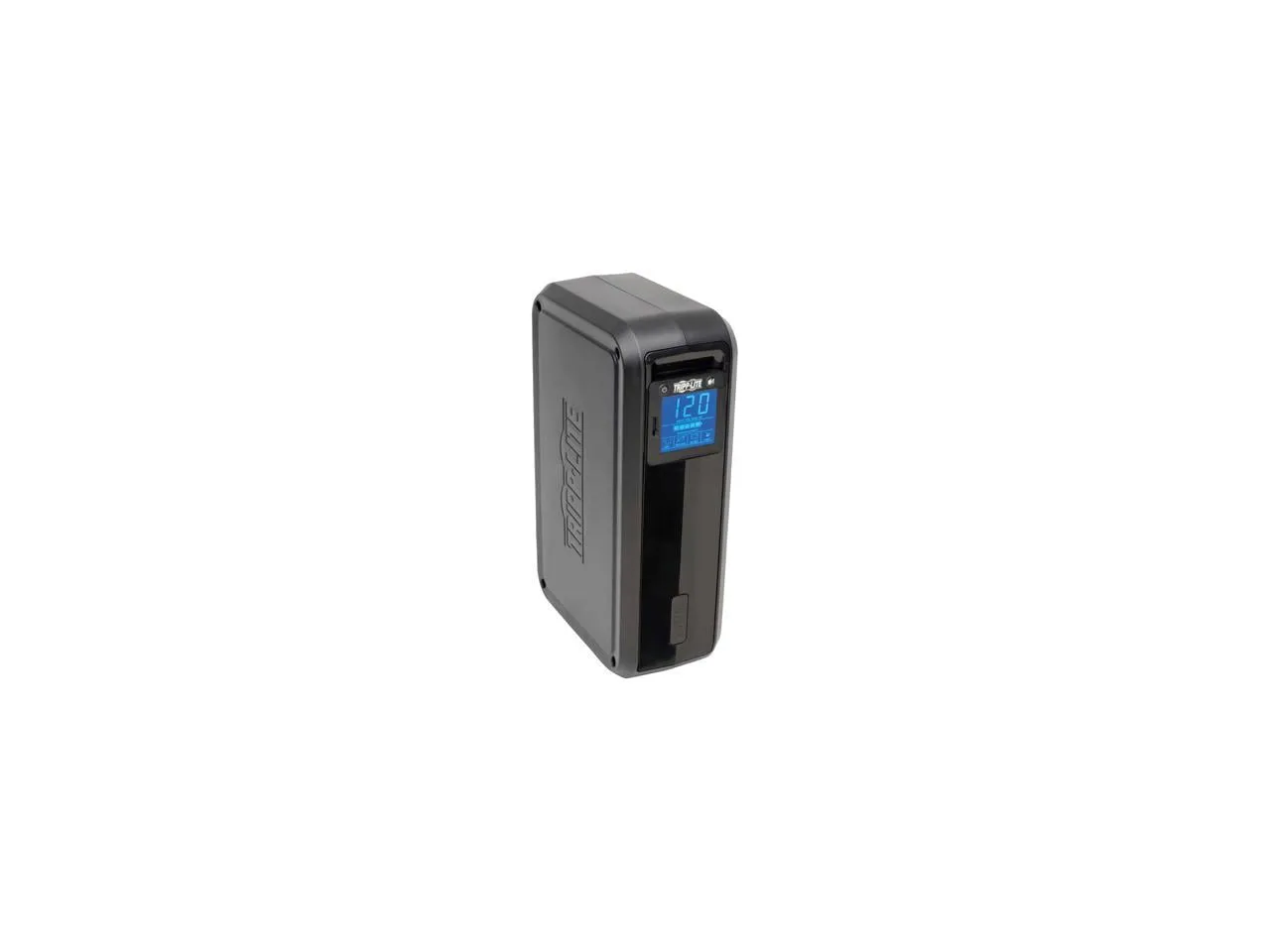

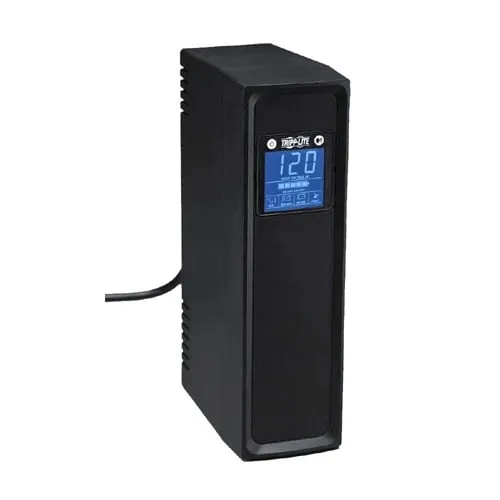

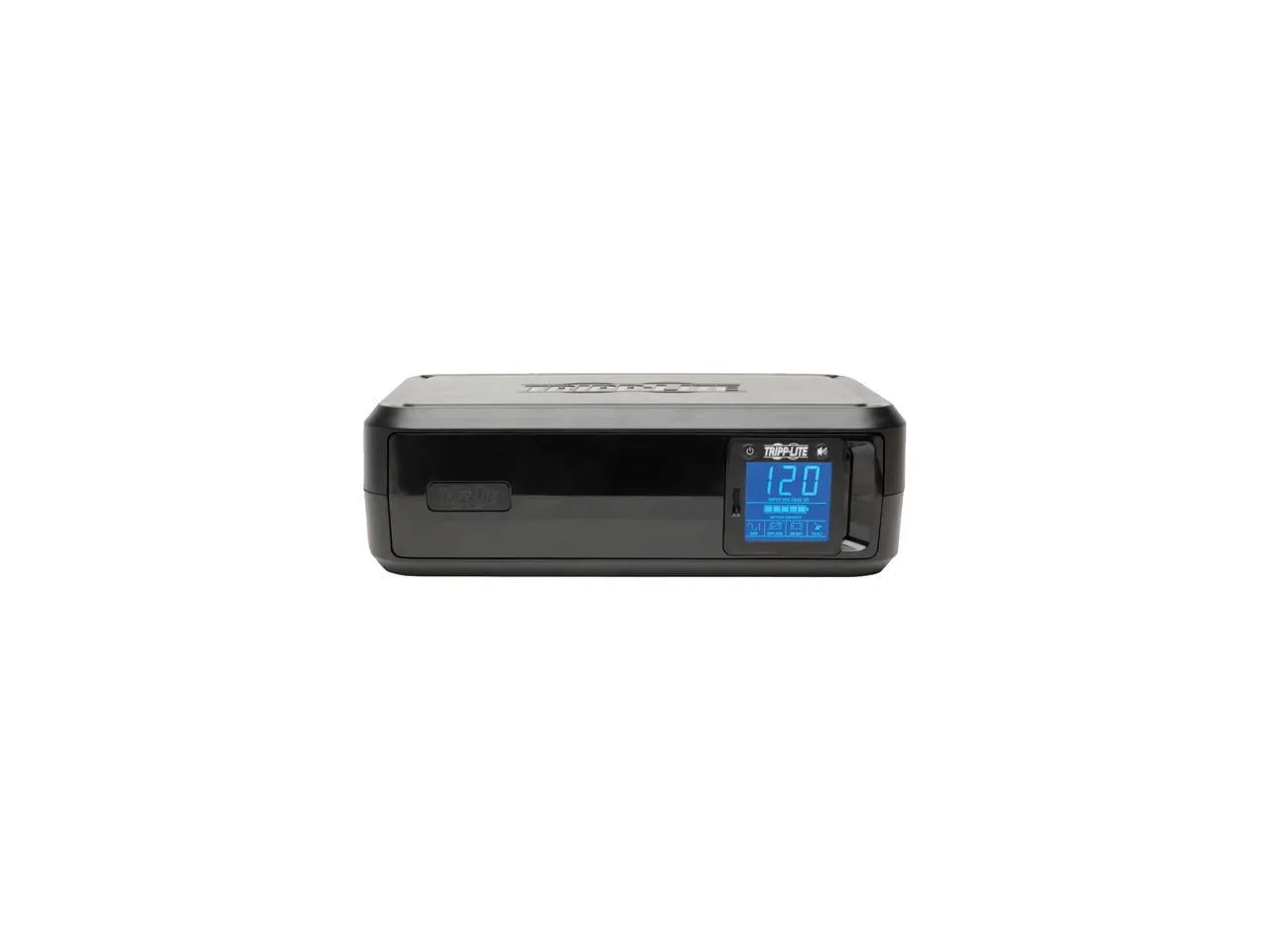

Product Name:SmartPro 1000 VA Tower Digital UPS
Marketing Information:Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets. USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 10 minutes with half load of 500VA/250W.
Packaged Quantity:1 Each
Product Type:Line-interactive UPS
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:4 x NEMA 5-15R
Dataline Protection:RJ-11
Transfer Time:4 ms
Power Description
Load Capacity (VA):1000 VA
Load Capacity (Watt):500 W
Input Voltage:120 V AC
Output Voltage:120 V AC
Surge Energy Rating:1038 J
Interfaces/Ports
USB:Yes
Battery Information
Backup/Run Time (Full Load):3 Minute
Backup/Run Time (Half Load):10 Minute
Battery Life:6 Year
Typical Battery Recharge Time:8 Hour
Environmental Conditions
Maximum Operating Temperature:122°F (50°C)
Physical Characteristics
Color Family:Black
Product Color:Black
Height:10.4"
Width:15.6"
Depth:4.8"
Rack Height:2U
Form Factor:Tower
Weight (Approximate):14.60 lb
Miscellaneous

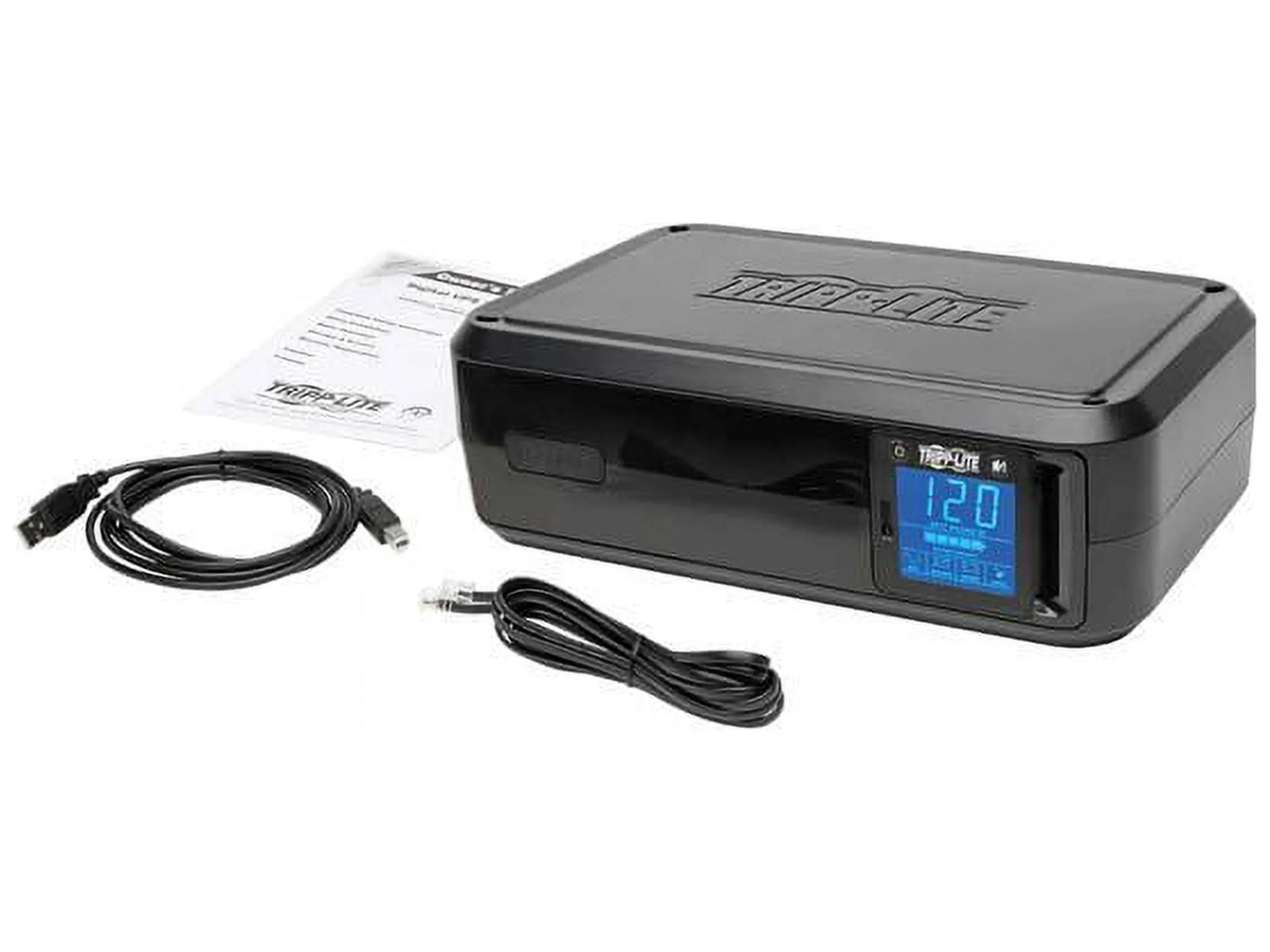

Package Contents:
- SmartPro 1000 VA Tower Digital UPS
- SMART1000LCD Digital UPS
- USB and phone cabling
- Manual with warranty information
Additional Information:
- Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 89V or less, switches back to AC mode as line voltage increases to 94V or higher
- High voltage transfer to battery power: Switches to battery mode as line voltage increases to 139V or higher, switches back to AC mode as line voltage decreases to 135V or lower
- Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common
- Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
- Switches: Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button
Certifications & Standards:
- UL1778 (TUV)
- cUL (TUV)
- NOM
- FCC Class B
- FCC part 68 (US & Canada)
Recycled:No
Assembly Required:No
Country of Origin:China
Warranty
Limited Warranty:3 Year
Additional Warranty Information:
